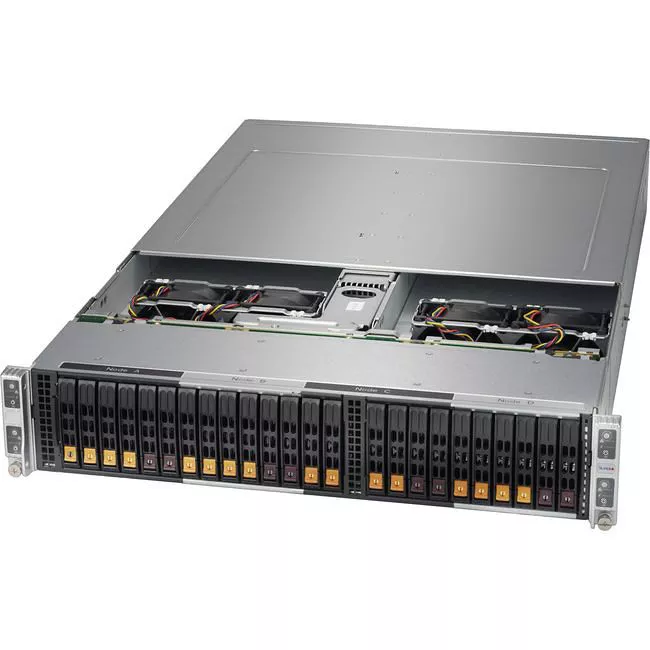

Supermicro AS -2123BT-HNC0R 2U Server

Please log in to add an item to your wishlist. MPN: AS -2123BT-HNC0R

Supermicro AS -2123BT-HNC0R 2U Server

Highlights

Overview

Specifications

The Supermicro AS-2123BT-HNC0R is based on the AMD EPYC 7001/7002 Series processor. It features four nodes, each with six 2.5" hot-swap drives and one SIOM networking card.

Specifications

Processor & Chipset (per node)

Number of Nodes

Number of Processors Supported

Processor Socket

Socket SP3

Processor Type

EPYC

Processor Supported

7001-Series
7002-Series

Thermal Design Power (TDP)

200W

Memory (Per node)

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-3200/PC4-25600

Number of Total Memory Slots

Controllers (Per node)

Controller Type

SAS3
NVMe

Display & Graphics (Per node)

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication (Per node)

SIOM Options

1000BASE-T

I/O Expansions (Per node)

PCI Express

2x PCI-E 3.0 x16 slots (Low Profile)
1 SIOM card support
1x M.2 PCI-E 3.0 x4 slot (2280, 22110)

Drive Bays (Per node)

Hot-swap

6x 2.5" Hot-Swap

M.2

1x M.2 SATA/PCI-E

Interfaces/Ports (Per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Number of SAS3 Interfaces

Number of NVMe Interfaces

Optional SIOM cards

2x RJ45 1000BASE-T Ports
4x RJ45 1000BASE-T Ports

LAN

1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

DOM

1x Disk on Module

COM / Serial

1x COM header

TPM

1x TPM 2.0 header

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

2200 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

28.5"
