Supermicro AS-2113S-WN24RT 2U Server

Please log in to add an item to your wishlist. MPN: AS-2113S-WN24RT

Supermicro AS-2113S-WN24RT 2U Server

Highlights

Overview

Specifications

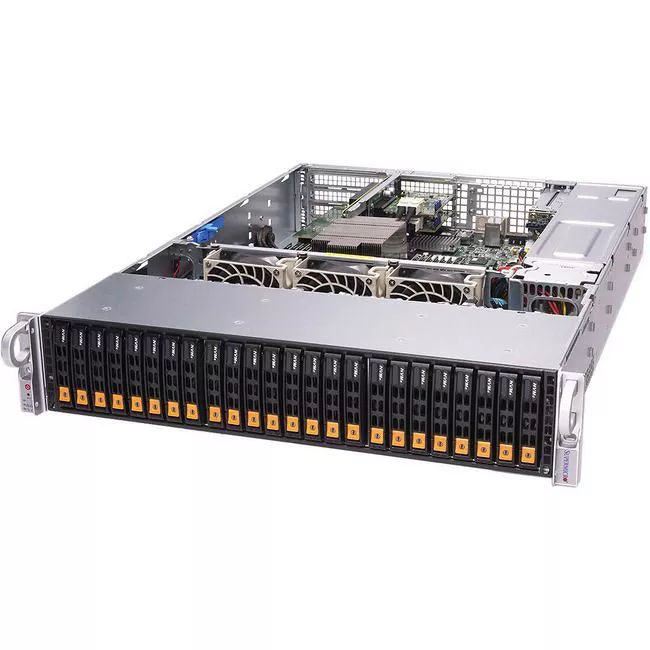

The Supermicro AS-2113S-WN24RT is based on the AMD EPYC 7001 Series processor. It features twenty-four 2.5" hot-swap NVMe drives and two PCI-E 3.0 x4 M.2 slots.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP3

Processor Type

EPYC

Processor Supported

7001-Series

Thermal Design Power (TDP)

N/A

Memory

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2666/PC4-21300

Number of Total Memory Slots

Controllers

NVMe

Via Backplane

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

10GBASE-T

I/O Expansions

PCI Express

1x PCI-E 3.0 x16 slot (Full-Height/Half-Length)
2x PCI-E 3.0 x4 M.2 slot (2280/22110)

Drive Bays

Hot-swap

24x 2.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

5 (4x rear, 1x Typa A)

Number of NVMe U.2 Interfaces

NVMe M.2 Interfaces

2x M.2 PCI-E 3.0 x4

LAN

2x RJ45 10GBASE-T Ethernet LAN Ports

Onboard Video

1x VGA Connector

TPM

1x TPM 1.2 header

Serial / Header

1x COM header

DOM

2x SATA Disk on Module ports

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1200 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.5"

Width

17.2"

Depth

24.8"
