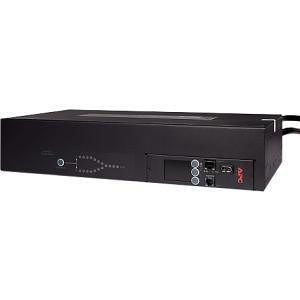

APC AP4453 RACK ATS, 120V, 30A, L5-30P IN, (16) 5-20R OUT
MPN # AP4453
UPC # 731304333524
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Automatic Transfer Switch
  • Plug/Connector Type: NEMA L5-30P
  • Output Voltage: 120 V AC
  • Rack Height: 2U
$1,189.02
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP4453
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Rack ATS, 120V, 30A, L5-30P in, (16) 5-20R Out
Product Type
Automatic Transfer Switch
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
16 x NEMA 5-20R
Protection Type
Over Current
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Current
30 A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17"
Depth
9.3"
Weight (Approximate)
13.95 lb
Miscellaneous
Package Contents
  • Rack ATS, 120V, 30A, L5-30P in, (16) 5-20R Out
  • Mounting Hardware
  • Rack Mounting Brackets
  • Serial Configuration Cable
Certifications & Standards
  • EN 55022 Class A
  • FCC Part 15 Class A
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
