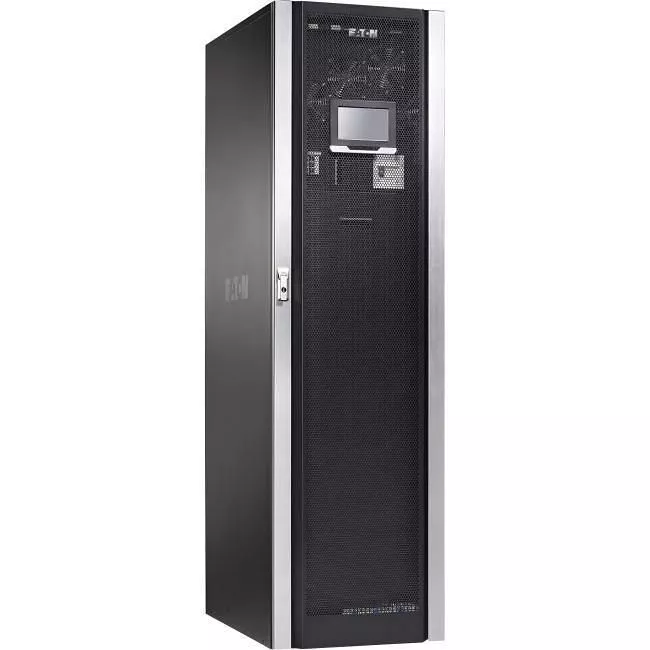

Eaton 9PV10A0027H40R2 93PM 160kW Tower UPS

MPN # 9PV10A0027H40R2
Availability: In Stock
Condition: New
Product highlights:
  • Output Voltage: 380 V AC | 400 V AC | 415 V AC
  • Subcategory: UPS
  • Product Type: Dual Conversion Online UPS
  • Condition: New
$58,784.98

Need Help?

let's talk about it.

Efficient. Scalable. Innovative.

The Eaton® 93PM UPS combines efficiency and reliability with an eye-catching design. A space-saving, scalable and flexible device that's as easy to deploy as it is to manage, it's the perfect three-phase white or grey space solution for today's data center.

Lowest TCO (total cost of ownership)

  • Conserve valuable data center floor space with the compact footprint, internal battery back-up and optional internal maintenance bypass
  • Grow effortlessly with the vertical scalability, reducing cost and unexpected future growth risks
  • Reduce power and cooling OPEX through industry-leading energy efficiency

- 99 percent efficiency with Energy Saver System (ESS)

- Up to 97 percent efficiency in double-conversion mode

Easy deployment

  • Provides flexible configurability, maximizing deployment flexibility

Easy management

  • Track statistics on energy savings, battery time and outages profile your load and much more with the friendly graphical LCD touchscreen interface
  • View system status from a distance with the green/yellow/red LED light bars
Advanced IT integration
  • Supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protcols
  • Manage your power devices in your physical or virtual environment with Eaton's Power Xpert® software and Intelligent Power™ Software Suite
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PV10A0027H40R2
Manufacturer Website Address
http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name
Eaton
Product Model
93PM
Product Name
93PM 160kW Tower UPS
Product Type
Dual Conversion Online UPS
Technical Information
Application/Usage
  • IT Infrastructure
  • Data Center
  • Server
  • Power Description
    Load Capacity
    160 kW
    Input Voltage
  • 380 V AC
  • 400 V AC
  • 415 V AC
  • Output Voltage
  • 380 V AC
  • 400 V AC
  • 415 V AC
  • Input Frequency
    50 Hz to 60 Hz
    Output Frequency
    50 Hz to 60 Hz
    Management
    Network Management
    SNMP/HTTP Remote Monitoring
    Controls/Indicators
    Status Indicators

    LED Light Bars

    Interfaces/Ports
    USB (HID Compliant) Port
    Yes
    EPO Port
    Yes
    Battery Information
    DC System Voltage
    480 V DC
    Physical Characteristics
    Form Factor
    Tower
    Height
    74"
    Width
    32"
    Depth
    42"
