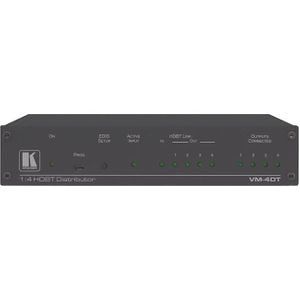

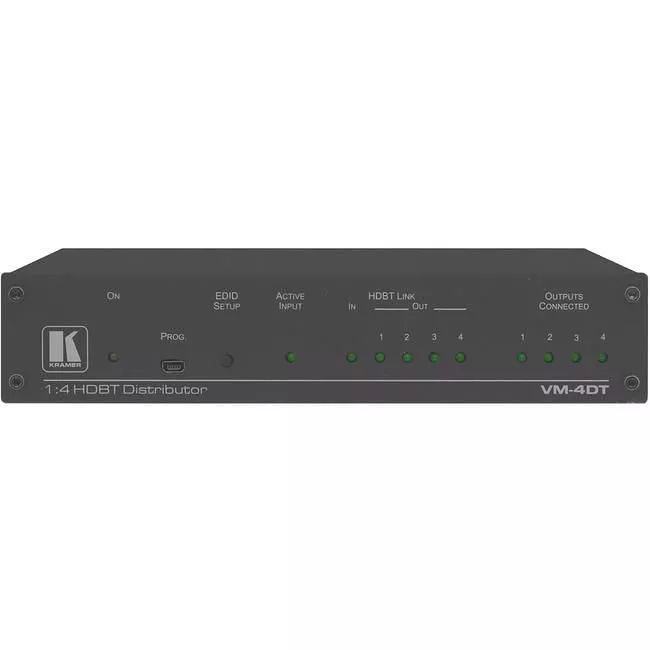

Kramer 10-8046301090 4K (4:2:0) 1:4 Long-reach HDBT DA
MPN # 10-8046301090 UPC # 7291063083380
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Audio/Video Distribution Amplifier
  • Condition: New
  • Category: Video Cards and Devices
  • Subcategory: Video Devices
$980.80
FREE SHIPPING
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

VM-4DT is a high-quality, long-reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long-reach HDBaseT input, equalizes and reclocks the signal and distributes it to four identical HDBaseT outputs. VM-4DT distributes native HDBaseT signals with up to 4K video resolution, along with their re-extension over HDBaseT.

  • High Performance Distribution - Distributes one native, long-reach HDBaseT signal to three outputs with up to 4K video resolution, along with their re-extension over HDBaseT.
  • Dual-side Extension - Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions, when deployed mid-way between an AV source and multiple remote acceptors using CAT copper cable.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • LED Indicators - Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Standard half-width 19" rack (1U) fan-less enclosure for side-by-side mounting of 2 units in a 1U rack space with included rack mounting-ears.
Applications
  • Native AV signal re-extension and distribution in large rooms
  • Applicable for corporate, education, hospitality, government market segments
General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
10-8046301090
Manufacturer Website Address
http://www.kramerelectronics.com
Brand Name
Kramer
Product Model
VM-4DT
Product Name
1:4 4K60 4:2:0 Long-Reach HDBaseT DA
Product Type
Audio/Video Distribution Amplifier
Video
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
5
Media & Performance
Maximum Operating Distance
229.66 ft
Power Description
Input Voltage
5 V DC
Physical Characteristics
Material
Aluminum
Height
1.7"
Width
8.5"
Depth
6.4"
Weight (Approximate)
2.20 lb
Miscellaneous
Package Contents
  • 1:4 4K60 4:2:0 Long-Reach HDBaseT DA
  • Power Supply
  • Rack Ears
Warranty
Limited Warranty
7 Year
