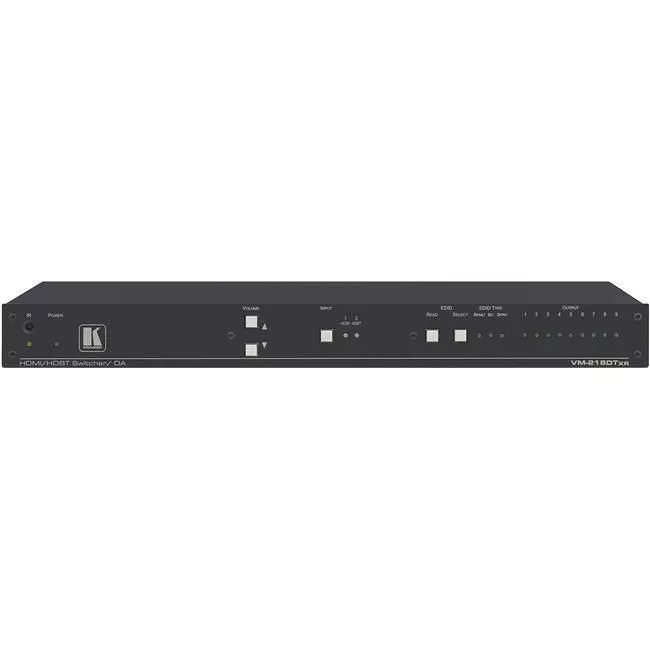

Kramer 10-80432030 VM-218DTXR 2x1:8 4K UHD HDMI and HDBaseT Distribution Amplifier
MPN # 10-80432030 UPC # 7291063086060
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Video Switchbox
  • Form Factor: Rack-mountable
  • Condition: New
  • Category: Video Cards and Devices
$4,319.20
FREE SHIPPING
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

VM-218DTxr is a high-quality, extended-reach 4K@60Hz (4:2:0) HDBaseT distributor that takes either an HDMI or an extended-reach HDBaseT input (selectable), equalizes and reclocks the signal and distributes it to eight identical extended-reach HDBaseT outputs, each with its own Ethernet and RS-232/IR control signals. The unit also includes a loop HDMI output along with audio de-embedding (extraction) to analog stereo port. As an integrated extender distributor, VM-218DTxr re-extends and distributes native extended-reach HDBaseT signals with up to 4K video resolution.

  • High Performance Extender Distributor - High-quality professional 1:8 distribution of native extended-reach HDBaseT signals, for deploying mid-way between an AV source and multiple remote displays and gaining extra extended-reach extension. It is coupled with both sides, input and output, extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 100m (330ft) extended-reach over CAT copper cable, and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market-available HDBaseT compliant extending product.
  • Cables - For optimum range and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Looping HDMI Output - Enables monitoring and cascading to additional DAs.
  • Ethernet Extension - Ethernet interface data flows in both directions on each extension line, enabling extension of up to 100Mbps Ethernet connectivity for LAN communication and control of devices.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, on each extension line, enabling data transmission and control of devices.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, on each extension line, enabling remote control of peripheral devices located at either end of the extended line.
  • Audio De-embedding (Extraction) - The transmitted digital audio signal is converted to an analog signal and de-embedded to stereo unbalanced analog audio output. This enables user-selectable de-embedding of input digital audio to play at local hi-quality speakers separate from a remote receiver-connected AV sink device, such as a TV display or audio speakers, to provide higher quality audio playback.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built-in web pages or RS-232 control connection. Local and remote firmware upgrade via mini-USB, control RS-232 or Ethernet connection and the K-Upload tool to ensure long field-proven deployment.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included rack ears.

APPLICATIONS

  • Presentation and multimedia applications
  • Rental and staging
General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
10-80432030
Manufacturer Website Address
http://www.kramerelectronics.com
Brand Name
Kramer
Product Model
VM-218DTxr
Product Name
VM-218DTxr Video Switchbox
Product Type
Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
2
Device Supported
  • Display
  • Media Player
  • Blu-ray Disc Player
  • Notebook
  • Projector
  • Speaker
  • Number of Displays Supported
    9
    Video
    Graphics Modes
    4K
    Interfaces/Ports
    HDMI In
    Yes
    HDMI Out
    Yes
    Connectivity (RJ-45)
    Yes
    Number of Connectivity (RJ-45) Ports
    10
    Number of USB Ports
    1
    Number of HDMI Inputs
    1
    Number of HDMI Outputs
    1
    Media & Performance
    Media Type Supported
    Twisted Pair
    Maximum Operating Distance
    7.09"
    Physical Characteristics
    Form Factor
    Rack-mountable
    Height
    1.7"
    Width
    17.2"
    Depth
    9.3"
    Weight (Approximate)
    5.51 lb
    Miscellaneous
    Package Contents
    • VM-218DTxr Video Switchbox
    • Power Cord
    • Rack Ears
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
