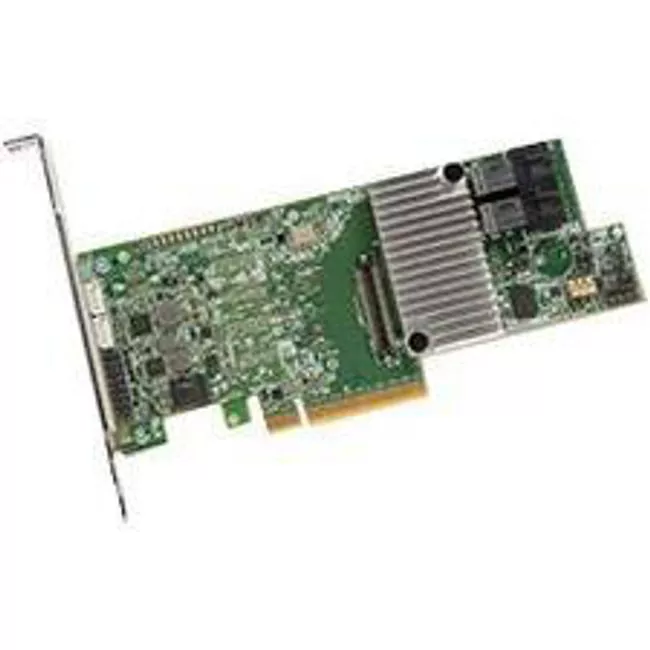

Broadcom 05-26106-00 8 Internal Port 12 Gb/s SAS Controller - LSI00407 / SAS 9341-8I SGL
MPN # 05-26106-00
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 1 | 5 | 10 | 50 | JBOD
$290.91
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That's where the MegaRAID® SAS 9341-8i 12Gb/s SAS and SATA RAID controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted servers, it provides the headroom required for future growth at an affordable price point.

  • Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with eight internal 12Gb/s SATA and SAS ports
  • Support high-bandwidth applications with PCIe® 3.0 connectivity
  • Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-26106-00
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
SAS 9341-8i
Product Name
MegaRAID SAS SAS 9341-8i SAS Controller
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 5
  • 10
  • 50
  • JBOD
  • Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (Internal)
    8
    SAS Connector Details
    2 SFF-8643
    Physical Characteristics
    Height
    2.5"
    Width
    6.6"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Weight (Approximate)
    1.32 lb
    Miscellaneous
    Package Contents
    • MegaRAID SAS SAS 9341-8i SAS Controller
    • QIG
    • LP Bracket
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
