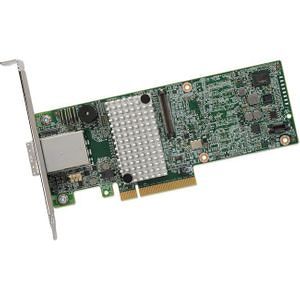

Broadcom 05-25528-04 8 External Port 12 Gb/s SAS Controller - LSI00438 / SAS 9380-8E SGL
MPN # 05-25528-04
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60
$858.60
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
Outstanding RAID Performance for Next-Generation Servers and Storage

The explosive growth of data in cloud and enterprise data centers is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. Avago Technologies first-to-market 12Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next- generation server and storage platforms. Offering up to double the data transfer rate of 6Gb/s SAS solutions, 12Gb/s SAS allows the SAS infrastructure to deliver bandwidth that can fully utilize that of PCI Express® 3.0 with a single controller card. The MegaRAID SAS 9380-8e, with eight external ports, delivers two 1.2GHz PowerPC® processor cores and a 72-bit DDRIII interface that drives 1GB cache memory. Powered by the LSI SAS 3108 dual-core ROC, the 9380-8e controller includes the latest PCI Express 3.0 and 12Gb/s SAS technology and is designed for configuring external storage enclosures with high-performance SAS hard drives, high-capacity SATA hard drives or application-accelerating solid state drives (SSDs).

Enterprise Data Protection

Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, and CacheVault® flash cache protection module, further strengthen the data protection capabilities of the MegaRAID SAS 9380-8e. A new enterprise feature employed by the 12Gb/s MegaRAID SAS controllers is advanced drive diagnostic technology. In the event of a physical drive failure, the drive is placed in shield state and the MegaRAID controller starts drive diagnostics to determine if the drive is indeed failed or can be restored. This saves customers time, money and lost compute time associated with transient drive failures and unnecessary drive returns.

Support for Advanced Software Options

The family of 12Gb/s MegaRAID controllers are designed to support advanced software options that provide system integrators and VARs with enhanced performance and data protection capabilities. These software options help enable end users to address key business challenges while helping to deliver a higher return on their IT investments. MegaRAID CacheCade® Pro 2.0 software (optional) and MegaRAID Fast Path software (included) boost transactional I/O performance of SSD configurations, while SafeStoreTM software enables enhanced data protection and security when used with encryption capable devices.
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25528-04
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
9380-8e
Product Name
MegaRAID SAS 9380-8e
Packaged Quantity
1
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60
  • Number of Logical Drive Supported
    64
    Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (Internal)
    2
    SAS Connector Details
    2 SFF-8644
    Physical Characteristics
    Height
    2.5"
    Width
    6.6"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Miscellaneous
    Platform Supported
  • PC
  • SPARC
  • Warranty
    Limited Warranty
    3 Year
