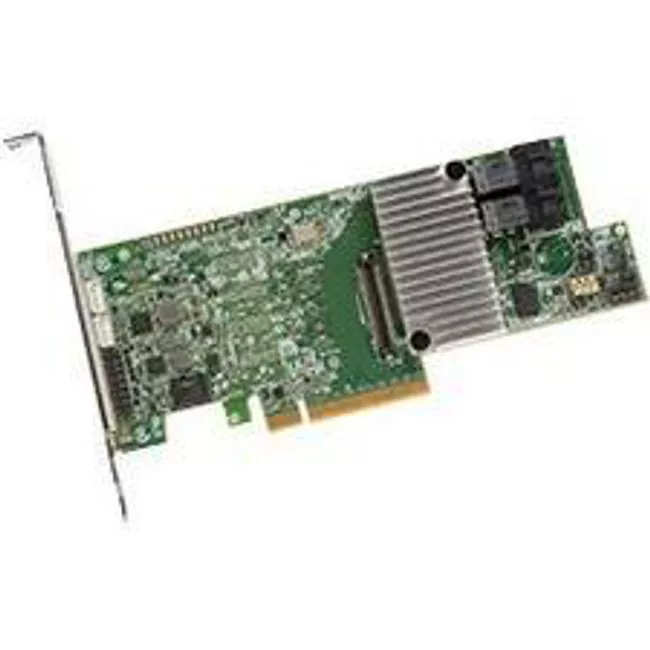

Broadcom 05-25420-17 8 Internal Port 12 Gb/s SAS Controller - LSI00462 / SAS 9361-8I SGL 2GB
MPN # 05-25420-17 UPC # 830343003563
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60
Need Help?   let's talk about it.

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
  • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25420-17
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
9361-8i
Product Name
MegaRAID SAS 9361-8i (2G)
Package Type
Retail
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60
  • Data Backup Type
    Flash Backed Cache
    Memory
    Cache Memory
    1 GB
    Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (Internal)
    8
    SAS Connector Details
    2 SFF-8643
    Physical Characteristics
    Height
    6.6"
    Depth
    2.5"
    Form Factor
    Plug-in Card
    Miscellaneous
    Package Contents
    • MegaRAID SAS 9361-8i
    • QIG
    • LP Bracket
    Platform Supported
  • PC
  • Linux
  • Warranty
    Limited Warranty
    3 Year
