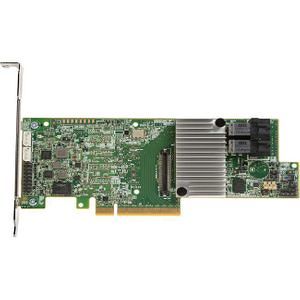

Broadcom 05-25420-08 8 Internal Port 12 Gb/s SAS Controller - LSI00417 / SAS 9361-8I SGL
MPN # 05-25420-08 UPC # 090781314380
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 5 | 6 | 10 | 50 | 60 | 1
$625.51
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
  • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25420-08
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
9361-8i
Product Name
MegaRAID SAS 9361-8i SGL
Packaged Quantity
1
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
  • 50
  • 6
  • 60
  • Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (Internal)
    2
    SAS Connector Details
    2 SFF-8643
    Physical Characteristics
    Height
    2.5"
    Width
    6.6"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Miscellaneous
    Package Contents
    • MegaRAID SAS 9361-8i SGL
    • Quick Installation Guide
    • Low Profile L-bracket
    Platform Supported
  • PC
  • SPARC
  • Warranty
    Limited Warranty
    3 Year
