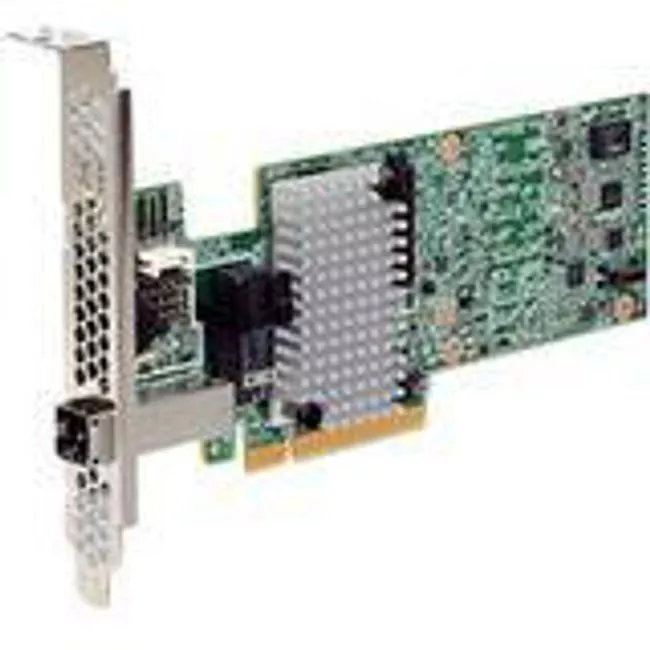

Broadcom 05-25190-02 4 Internal/External Port 12 Gb/s SAS Controller - LSI00439 / SAS 9380-4I4E SGL
MPN # 05-25190-02 UPC # 650361454006
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 5 | 6 | 10 | 50 | 60 | JBOD | 1
$761.91
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9380-4i4e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 240 SATA or SAS drives with four internal and four external 12Gb/s SAS ports
  • Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements.
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25190-02
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
SAS 9380-4i4e
Product Name
MegaRAID SAS 9380-4i4e SAS Controller
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 5
  • 6
  • 10
  • 50
  • 60
  • JBOD
  • 1
  • Memory
    Cache Memory
    1 GB
    Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (Internal)
    4
    Number of SAS Ports (External)
    4
    SAS Connector Details
  • 1 SFF-8643
  • 1 SFF-8644
  • Physical Characteristics
    Height
    2.5"
    Width
    6.6"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Weight (Approximate)
    1.32 lb
    Miscellaneous
    Package Contents
    • MegaRAID SAS 9380-4i4e SAS Controller
    • QIG
    • LP Bracket
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
