Introduction

For many organizations exploring advanced computing, there’s a persistent assumption that serious AI, simulation, or scientific workloads require a cluster(s) of compute servers, fast data, interconnected storage, and management to orchestrate it all. Modern multi-GPU workstations deliver performance that rivals small clusters while remaining simpler, cheaper, and far more accessible.

In short, you probably don’t need a cluster. A single SabrePC workstation equipped with four NVIDIA RTX™ 6000 Blackwell GPUs can actually accomplish more than you think, enabling workloads that previously seemed cluster-only.

To make this concrete, we’ll quantify workloads using decision-relevant metrics:

• Local AI development: Parameter counts for training, inference, and local LLMs
• Molecular Dynamics: Atom counts for feasible system sizes
• Engineering Simulation: Cell counts supported by GPU-accelerated solvers

The goal is simple: help you determine when a workstation is not just adequate, but highly effective—and when you genuinely need a cluster.

The Modern 4× GPU Workstation

Our workstation equipped with four NVIDIA RTX™ 6000 Blackwell GPUs (96 GB VRAM each) provides a level of computational density that was previously limited to multi-node systems. Each GPU offers high memory capacity, strong FP8/FP16 throughput, and efficient PCIe-based multi-GPU communication, making the configuration suitable for a wide range of HPC and AI workloads.

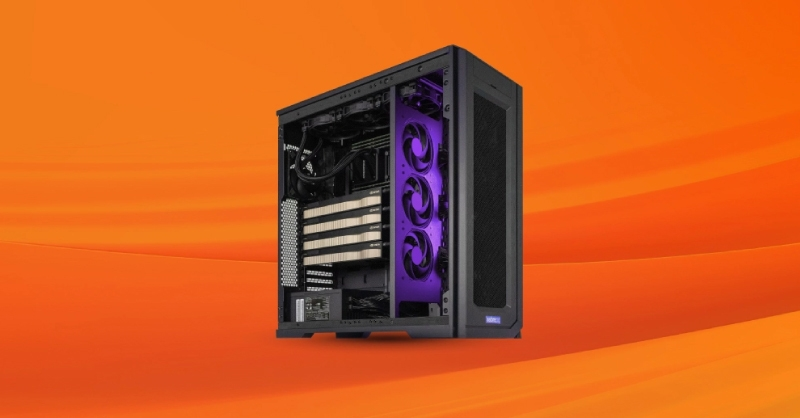

The SabreCore Workstation (CWS-8599920) with AMD Threadripper PRO features:

• High-core-count CPU: With up to 96 cores ready to render, run simulations, or facilitate AI deployment.
• Ample CPU memory: 8-channel DDR5 for up to 1TB of system memory for fewer bottlenecks, responsive, and low-latency operations in data-intensive workloads such as simulation and AI.
• High-speed PCIe 5.0 NVMe: Supports 4x M.2 SSDs all the PCIe 5.0 with additional storage options for U.2 NVMe SSDs as well.
• 4× GPU Support: The king of workstation GPUs, NVIDIA RTX 6000 Blackwell GPUs feature 96GB of VRAM for unimaginable performance capabilities. More on that later!

Compared with small clusters, a workstation has several operational advantages:

• Lower complexity
• Consistent individual access to resources
• Simplified software environment like a normal PC
• Lower total cost of ownership

For many organizations, one or a couple of workstations support the majority of research and production tasks that previously may have made you think about a cluster or a server. Here’s what a modern 4x GPU Workstation from SabrePC can do across AI, molecular dynamics, engineering simulation, and 3D content creation.

Local AI Workloads on a 4x GPU Workstation

With 4× RTX PRO 6000 Blackwell Max-Q GPUs providing 384 GB of total VRAM, a single workstation can handle AI model sizes that previously required multi-node setups. Memory capacity is the primary constraint, and modern parallelization frameworks make full use of the combined GPU resources.

A 4-GPU Blackwell workstation supports:

• 1–10B parameter models full training with comfortable batch sizes and longer sequence lengths.
• 20–40B parameter full fine-tuning, depending on precision and activation size.
• 70B+ parameter finetuning models using LoRA and QLoRA training methods
• 70–90B parameter models local LLMs and AI models fit reliably across four GPUs.
• 100B+ parameter model inference feasible using tensor parallelism amd FP4/FP8/FP16 quantized formats.

This configuration supports most AI research workloads—including LLM fine-tuning, model evaluation, and high-throughput inference—without requiring a small GPU cluster. Only very large-scale pretraining exceeds the limits of a 4× GPU workstation.

Life Science on a 4x GPU Workstation

GPU-accelerated Life Science in Molecular Dynamics and Cryo-EM is GPU-accelerated to accomplish remarkable insight. Scale efficiently on a single multi-GPU workstation, making full use of the aggregate compute and memory bandwidth of 4× RTX 6000 Blackwell GPUs. Most simulation models can fit on a single 96GB GPU so you can effectively run four calculations in parallel.

4-GPU Blackwell workstation supports:

• Up to 5 million atom simulations for all-atom MD with commonly used force fields! Most models fall under the 1M atom count range.
• Larger coarse-grained or membrane systems that exceed several million particles.
• Facilitate large Cryo-EM 3D reconstruction and 2D classification workloads
• Process large datasets and stitch real-world 3D representations of molecular biology

This configuration is well-suited for research groups that depend on running routine MD, protein–ligand studies, or setting up next to an electron microscope. Clusters remain necessary only for very large biomolecular studies where job-scheduling, or multiple team members are accessing a pool of compute on extensive repetitive workloads.

Engineering Simulation — CFD, FEA, and Multiphysics

Modern GPU-enabled solvers, like in ANSYS Fluent, ANSYS Rocky, Siemens STAR-CCM+, and more, benefit directly from the aggregate memory. 4× Blackwell GPUs, with 384 GB of GPU memory available, a single workstation can accommodate engineering models that historically required distributed CPU clusters.

A 4-GPU Blackwell workstation supports:

• 300 million+ cell CFD cases, depending on solver precision mode.
• Large structural and multiphysics models that benefit from GPU acceleration in sparse linear algebra.
• Topology optimization and transient simulation workflows with significantly reduced iteration time.
• Performance comparable to 100–400 CPU cores, with lower latency and easier resource access.

This capability is sufficient for most design-phase and validation workloads in aerospace, automotive, energy, and manufacturing. Clusters are only required for ultra-high-resolution CFD (e.g., LES/DNS), very large FEA assemblies, or large-scale parameter sweeps.

3D Content Creation — Rendering and GPU Simulation

A 4× RTX 6000 Blackwell workstation provides substantial capability for 3D content creation, combining large GPU memory capacity with strong rendering and simulation throughput. Modern engines—such as Blender Cycles, Unreal Engine, Omniverse, Arnold, and Redshift—take advantage of multi-GPU rendering and can distribute workloads efficiently without cluster infrastructure.

A 4-GPU Blackwell workstation supports:

• High-resolution, multi-layer scenes with tens of millions of polygons and large texture sets using the combined 384 GB of VRAM.
• Multi-GPU path tracing for significantly reduced frame and sequence render times.
• Real-time or near–real-time viewport performance in pipelines leveraging RTX/RT cores.
• Fast GPU simulations for rigid body, particle, fluid, pyro, and cloth workflows.

For small studios and advanced visualization groups, this allows both creative iteration and final rendering to remain on a single system, reducing reliance on distributed render farms except for full-scale production workloads.

Cost, Complexity, and When a Cluster Is Actually Required

A 4× GPU workstation offers a straightforward operational model compared with even a small cluster. There is no need for node provisioning, high-speed networking, job schedulers, or distributed storage systems. Users have direct access to all resources at all times, which shortens iteration cycles and simplifies software deployment.

Key advantages include:

• Lower total cost of ownership: reduced power, cooling, and administrative overhead.
• Simplified environment: single-node configuration avoids the complexity of distributed MPI or multi-node NCCL setups.
• Predictable performance: no queueing or multi-user contention.
• Data governance: sensitive datasets remain local, avoiding cloud transfer requirements.

For many teams, this configuration supports the majority of practical workloads in AI, MD, engineering simulation, and content creation. A cluster is only required when:

• Models exceed ~100B parameters for training or very long-sequence LLM workloads.
• Engineering simulations exceed 500M cells. However, many will just modify your model size to fit their hardware.
• MD studies involve extremely large biomolecular assemblies or large ensemble jobs.
• Rendering farms are needed to produce large volumes of frames on tight deadlines.

In most cases, a single 4× GPU Blackwell workstation handles day-to-day research and production tasks effectively, with clusters reserved for cases where scale, resolution, or throughput clearly extend beyond single-node limits.

Conclusions

A workstation equipped with 4× NVIDIA RTX 6000 Blackwell GPUs provides substantial capability across AI, molecular dynamics, engineering simulation, and 3D content creation. With 384 GB of combined GPU memory, it supports model and problem sizes that once required distributed systems, while avoiding the operational overhead of a cluster.

For most research groups and engineering teams, this configuration delivers the performance needed for routine development, experimentation, and production workloads. It offers predictable turnaround times, straightforward maintenance, and a lower total cost of ownership. Clusters remain valuable for only the largest-scale problems—very high–parameter AI models, ultra-large simulations, or workloads requiring broad task-level parallelism.

In practice, a modern multi-GPU workstation covers a wide portion of HPC and advanced computing needs, making it a practical starting point before committing to multi-node infrastructure. Configure your own SabrePC SabreCORE workstation today!
