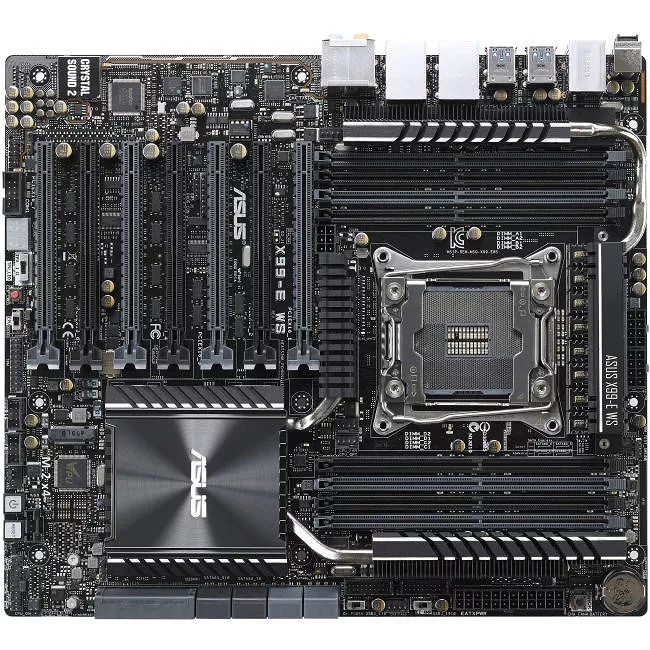

ASUS X99-E WS/USB 3.1 Workstation Motherboard - Intel Chipset - Socket LGA 2011-v3
MPN # X99-E WS/USB 3.1
Condition: New
Product highlights:
  • Processor Socket: Socket LGA 2011-v3
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 64 GB
$476.46
FREE SHIPPING
Need Help?   let's talk about it.
Intel® Core™ i7 Processor LGA2011-v3 Ready

This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
X99-E WS/USB 3.1
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
X99-E WS/USB 3.1
Product Name
X99-E WS/USB 3.1 Workstation Motherboard
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket LGA 2011-v3
Processor Supported
  • Core i7
  • Xeon
  • Memory
    Number of Memory Slots
    8
    Memory Form Factor
    DIMM
    Maximum Memory
    64 GB
    Memory Standard
  • DDR4-3200/PC4-25600 (O.C.)
  • DDR4-3000/PC4-24000 (O.C.)
  • DDR4-2800/PC4-22400 (O.C.)
  • DDR4-2666/PC4-21300 (O.C.)
  • DDR4-2400/PC4-19200 (O.C.)
  • DDR4-2133/PC4-17000
  • Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 3.20 GHz (O.C.)
  • 3 GHz (O.C.)
  • 2.80 GHz (O.C.)
  • 2.67 GHz (O.C.)
  • 2.40 GHz (O.C.)
  • 2.13 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
  • Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    7
    Total Number of PCI Express Slots
    7
    Number of PCI Express x16 Slots
    7
    Interfaces/Ports
    Number of eSATA Ports
    2
    Total Number of USB Ports
    10
    Number of USB 3.0 Ports
    8
    Number of USB 3.1 Ports
    2
    S/PDIF
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    8
    Number of M.2 Interfaces
    1
    Number of SATA Express Interfaces
    2
    Total Number of Onboard USB Ports
    8
    Number of Onboard USB 3.0 Ports
    4
    Onboard S/PDIF Header
    Yes
    Physical Characteristics
    Form Factor
    SSI CEB
    Width
    12"
    Depth
    10.5"
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
