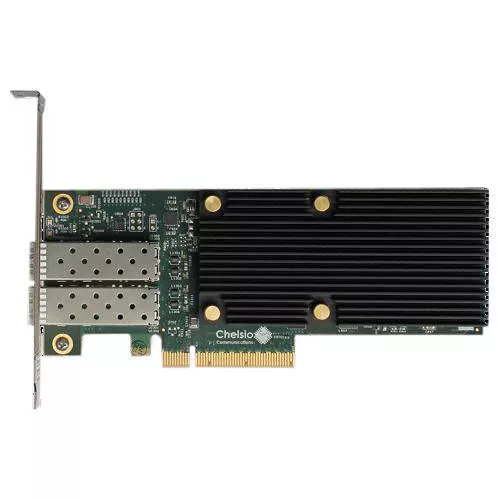

Chelsio T520-SO-CR 2-port Low Pro 1/10GbE Server Offload Adapter W/ PCI-E x8 Gen 3, Server Offload

MPN # T520-SO-CR UPC # 650361662234
Condition: New
Product highlights:
  • Media Type Supported: Optical Fiber
  • Network Technology: 10GBase-SR | 10GBase-LR
  • Product Type: 10Gigabit Ethernet Card
  • Condition: New
$231.00

Need Help?

let's talk about it.
Chelsio's T520-SO-CR is a memory free dual-port 10 Gigabit Ethernet Unified Wire adapter with a PCI Express 3.0 host bus interface, optimized for cloud computing, virtualization, storage, and other datacenter applications.



This adapter, based on the fifthgeneration (T5) technology from Chelsio provides the highest 10GbE performance available and dramatically lowers hostsystem CPU communications overhead with on-board hardware that offloads TCP/IP processing from its host system. T520-SO-CR frees up host CPU cycles for useful applications. The system achieves increased bandwidth, lower latency and uses less power.
General Information
Manufacturer
Chelsio Communications
Manufacturer Part Number
T520-SO-CR
Manufacturer Website Address
http://www.chelsio.com
Brand Name
Chelsio
Product Model
T520-SO-CR
Product Name
T5 Dual Port 10GbE Adapter
Product Type
10Gigabit Ethernet Card
Interfaces/Ports
Host Interface
PCI Express x8
Network (RJ-45)
No
USB
No
Serial Port
No
Ethernet AUI
No
XJACK
No
PoE (RJ-45) Port
No
I/O Expansions
Number of Total Expansion Slots
2
Expansion Slot Type
SFP+
Number of SFP+ Slots
2
Media & Performance
Media Type Supported
Optical Fiber
Network & Communication
Network Technology
  • 10GBase-SR
  • 10GBase-LR
  • Physical Characteristics
    Card Height
    Low-profile
    Form Factor
    Plug-in Card
    Height
    2.7"
    Width
    6.6"
    Miscellaneous
    Certifications & Standards
    • IEEE 802.3ae
    • IEEE 802.3az
    • IEEE 802.3z
    • IEEE 802.1p
    • IEEE 8021Q
    • IEEE 802.1Qbg
    • IEEE 802.Qhn
    • IEEE 9-2/1Qg/h
    • IEEE 802.3x
    • IEEE 802.3ad
    Platform Supported
  • PC
  • Mac
  • Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
