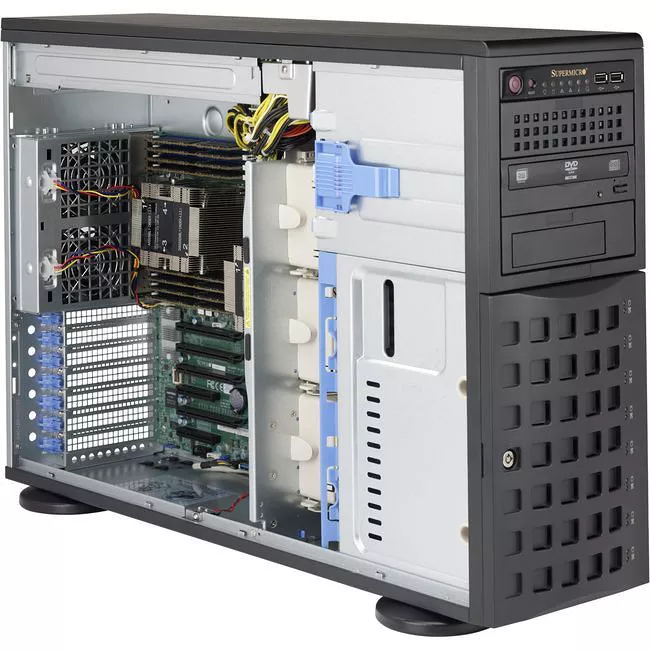

Supermicro SYS-7049P-TR 4U Server
MPN # SYS-7049P-TR
Condition: New
Product highlights:
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 8x 3.5" Hot-Swap
  • Supports up to 3x Double-Wide cards
  • Rack Height: 4U Rack Mount Convertible
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-7049P-TR is based on the Intel Xeon Scalable family. It offers eight 3.5" hot-swappable drive bays with support for up to three double-wide PCI-E cards..

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
2
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
4 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (Supports 3x double-wide cards)
  • 2x PCI-E 3.0 x8 slots
  • 1x PCI-E 3.0 x4 M.2 slot
Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap drive bays
Peripheral
  • 3x 5.25" Peripheral drive bays
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
8
Number of M.2 Interfaces
1
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes (1+1)
Maximum Power Supply Wattage
1280 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
