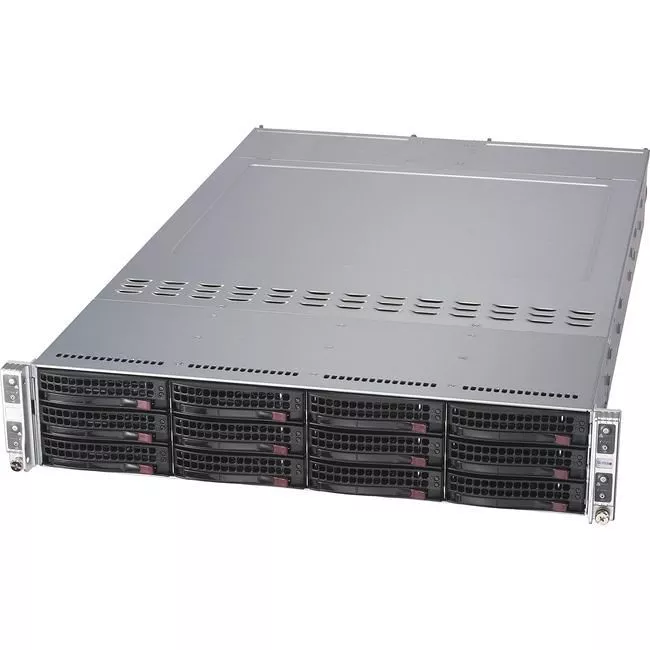

Supermicro SYS-6029TR-HTR 2U 4x Node Server

Please log in to add an item to your wishlist. MPN: SYS-6029TR-HTR

Supermicro SYS-6029TR-HTR 2U 4x Node Server

Highlights

Overview

Specifications

The Supermicro SYS-6029TR-HTR is based on the Intel Xeon Scalable family processor. It features four nodes, each with three 3.5" hot-swap drives.

Specifications

Processor & Chipset

Number of Nodes

Number of Processors Supported (per node)

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Silver 41XX
Gold 51XX
Gold 61XX
Platinum 81XX
Bronze 32XX
Silver 42XX
Gold 52XX
Gold 62XX
Platinum 82XX

Number of QPI links

Thermal Design Power (TDP)

140 W

Chipset Manufacturer

Intel

Chipset Model

C621

Memory (per node)

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers (per node)

SATA3

Via C621 chipset
RAID 0, 1, 5

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions (per node)

PCI Express

1x PCI-E 3.0 x16 slot (Low-profile)
1x PCI-E 3.0 x4 M.2 slot (22110/2280)

Drive Bays (per node)

Hot-swap

3x 3.5" Hot-swap drive bays

Interfaces/Ports (per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Number of SATA Interfaces

LAN

2x RJ45 1000BASE-T ethernet LAN Port
1x RJ45 IPMI dedicated LAN Port

Onboard Video

1x VGA Connector

Serial Port / Header

1x Header

DOM

2x Disk on Module port

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

28.5"
