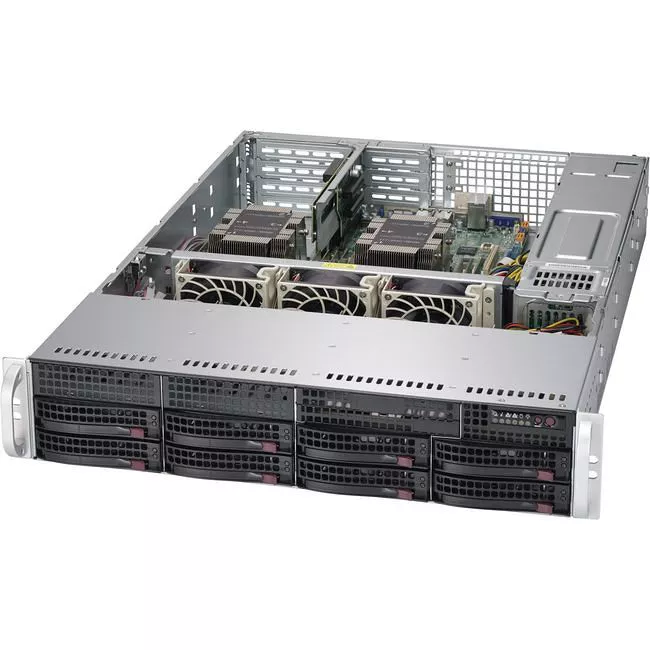

Supermicro SYS-6029P-WTR 2U Server

Highlights

Overview

Specifications

The Supermicro SYS-6029P-WTR is based on the Intel Xeon Scalable family processor. It features ten 3.5" hot-swap and two 3.5" fixed internal drive bays, and one NVMe M.2 slot.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Silver 41XX
Gold 51XX
Gold 61XX
Platinum 81XX
Bronze 32XX
Silver 42XX
Gold 52XX
Gold 62XX
Platinum 82XX

Thermal Design Power (TDP)

Up to 205W

Chipset Manufacturer

Intel

Chipset Model

C621

Memory

Maximum Memory

3 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

Controller Type

SATA3

RAID Supported

Yes

RAID Levels

0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

1000BASE-T

Number of Network (RJ45) Ports

I/O Expansions

PCI Express

4x PCI-E 3.0 x8 slots (Full-Height, Half-Length)
2x PCI-E 3.0 x8 slots (Low-Profile)
1x PCI-E 3.0 x16 slot (Add-on-Module)
1x PCI-E 3.0 x4 NVMe M.2 slot

Drive Bays

Hot-Swap

8x 3.5" Hot-Swap Drive Bays

Internal

2x 3.5" Fixed Drive Bays

Interfaces/Ports

Total Number of USB 3.0 Ports

4 (rear)

Number of SATA Interfaces

LAN

2x 1000BASE-T RJ45 Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA

DOM

2 Disk on Module port

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.5"

Width

17.2"

Depth

25.5"
