Supermicro SYS-6018R-MT 1U Server

Please log in to add an item to your wishlist. MPN: SYS-6018R-MT

Supermicro SYS-6018R-MT 1U Server

Highlights

Overview

Specifications

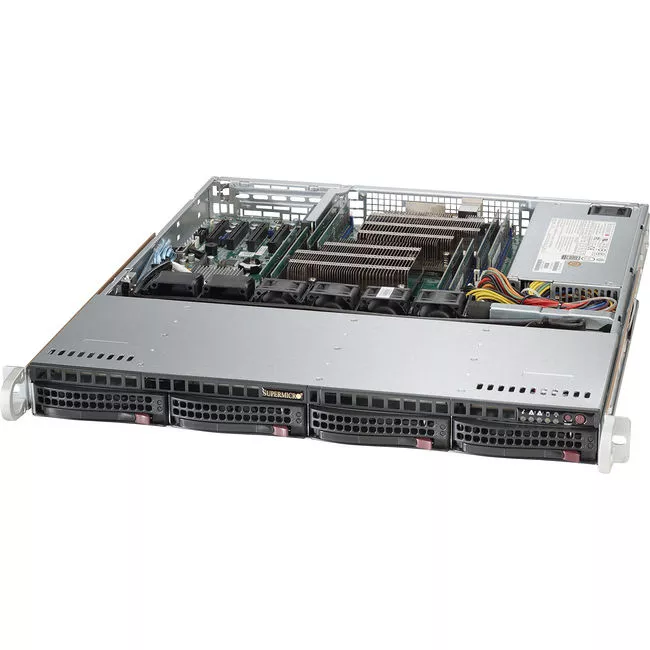

The Supermicro SYS-6018R-MT is based on the Intel Xeon E5-2600 v3/v4 families. It offers four hot-swappable 3.5" drive bays and one PCIe 3.0 x8 slot in a short depth 1U chassis.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 2011-3

Processor Type

Xeon

Processor Supported

E5-2600 v3
E5-2600 v4

Thermal Design Power (TDP)

Up to 135W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory

Maximum Memory

512 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

Controller Type

SATA3

RAID Supported

Yes

RAID Levels

0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

1x PCI-E 3.0 x8 slot (Full-Height, Half-Length)

Drive Bays

Hot-swap

4x 3.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

4 (2x rear, 2x header)

Number of USB 2.0 Ports

5 (2x rear, 2x header, 1x Type A)

Number of SATA Interfaces

LAN

2x RJ45 Gigabit Ethernet LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

Serial Port/Header

2x COM ports (1x rear, 1x header)

DOM

2x DOM (Disk on Module) power connectors

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

480 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

19.8"
