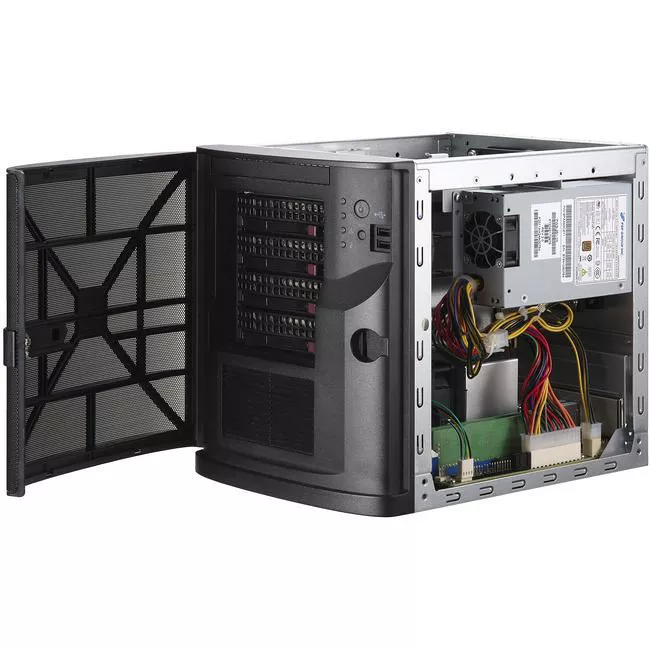

Supermicro SYS-5029C-T Mini-Tower
MPN # SYS-5029C-T
Condition: New
Product highlights:
  • Processor Supported: 1x Intel Socket H4 LGA-1151
  • Drive Bays: 4x 3.5" Hot-Swap, 2x 2.5" Internal
  • 1x PCI-E 3.0 x4 M.2 slot
  • Form Factor: Mini PC
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-5029C-T is based on the Intel Socket H4 LGA-1151 family. It offers four 3.5" hot-swap and two 2.5" internal drive bays, and support for one PCI-E 3.0 M.2 slot.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Type
  • Xeon
  • Core
  • Celeron
  • Pentium
Processor Supported
  • E-2100
  • Core i3
  • Celeron
  • Pentium
Thermal Design Power (TDP)
80 W
Chipset Manufacturer
Intel
Chipset Model
C242
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
2
Controllers
SATA3
  • Via C242 chipset
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slot (Low-Profile)
  • 1x PCI-E 3.0 x4 M.2 slot (2280)
Drive Bays
Hot-Swap
  • 4x 3.5" Hot-Swap drive bays
Internal
  • 2x 2.5" fixed drive bay
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2 (rear)
Number of USB 3.1 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
4
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • VGA
Serial Port/Header
  • 1x COM Ports (rear)
DOM
  • 1x Disk on Module port
TPM
  • 1x TPM 2.0 Header
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
250 W
Certification
80 Plus Bronze
Physical Characteristics
Color
Black
Form Factor
Mini PC
Height
9.45"
Width
8.27"
Depth
11"
