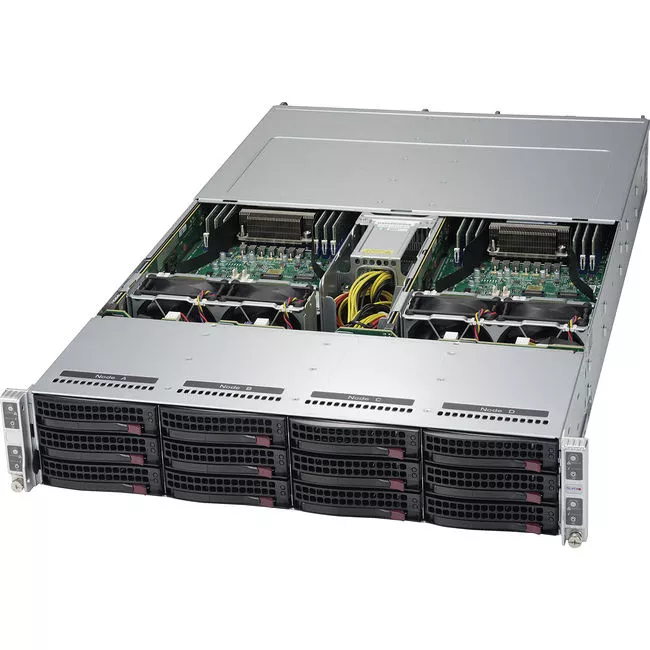

Supermicro SYS-5028TK-HTR 2U Server

Please log in to add an item to your wishlist. MPN: SYS-5028TK-HTR

Supermicro SYS-5028TK-HTR 2U Server

Highlights

Overview

Specifications

The Supermicro SYS-5028TK-HTR is based on the Intel Xeon Phi x200/x205 families. It offers four nodes, each with support for three 3.5" drive bays.

Specifications

Processor & Chipset (per node)

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon Phi

Processor Supported

x200
x205

Thermal Design Power (TDP)

Up to 260 W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory (per node)

Maximum Memory

384 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

SATA3

Via C612 chipset
RAID 0, 1, 5

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions (per node)

PCI Express

2x PCI-E 3.0 x16 (low-profile) slots

Drive Bays (per node)

Hot-swap

3x 3.5" Hot-swap drive bays

Interfaces/Ports (per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Number of SATA Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports
1x RJ45 IPMI LAN Port

Onboard Video

1x VGA Connector

COM Port/Header

1x COM (header)

DOM

2x DOM ports

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

2000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

30.00"
