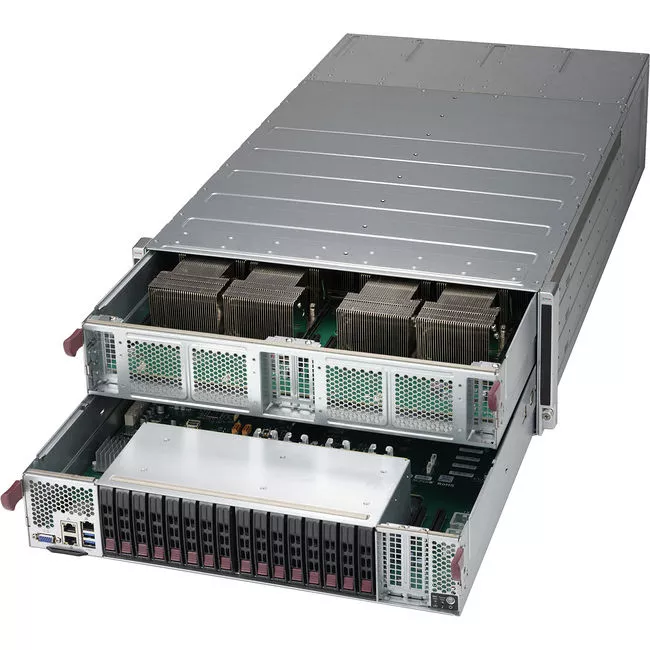

Supermicro SYS-4028GR-TXR 4U Server
MPN # SYS-4028GR-TXR
Condition: New
Product highlights:
- Processor Supported: 2x Intel E5-2600 v3/v4
- Drive Bays: 16x 2.5" Hot-Swap (8x NVMe)
- Supports up to 8x NVIDIA Tesla P100 SXM2 GPUs
- Rack Height: 4U
Need Help? let's talk about it.
The Supermicro SYS-4028GR-TXR is based on the Intel Xeon E5-2600 v3/v4 families. It features sixteen hot-swappable 2.5" drive bays, eight of which are NVMe, and support for eight NVIDIA Tesla P100 SXM2 GPUs.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
- E5-2600 v3
- E5-2600 v4
Thermal Design Power (TDP)
Up to 160W
GPU
8x NVIDIA Tesla P100 SXM2
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
24
Controllers
SATA3
- Via C612 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
- 1000BASE-T
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots (Low-profile)
- 2x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
16x 2.5 hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x Serial Header
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.6"
Depth
31.7"
