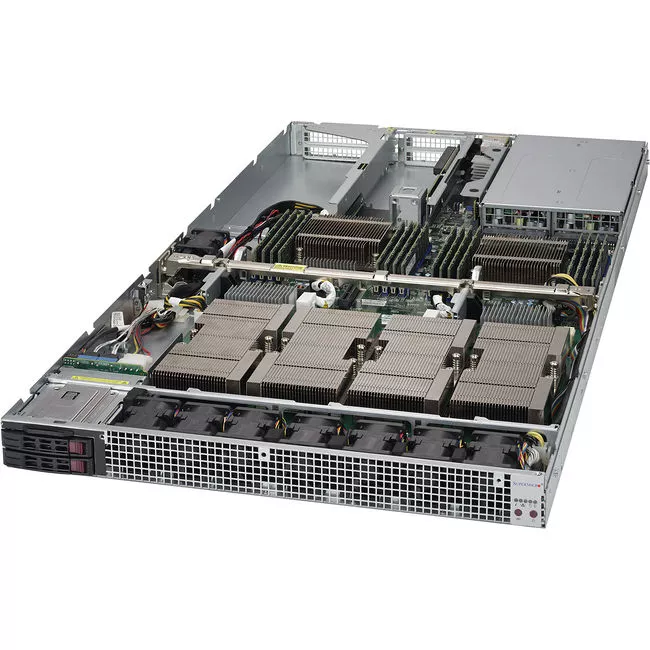

Supermicro SYS-1028GQ-TXR 1U Server
MPN # SYS-1028GQ-TXR
Condition: New
Product highlights:
- Processor Supported: 2x Intel E5-2600 v3/v4
- Drive Bays: 2x 2.5" Hot-Swap, 2x 2.5" Internal
- Supports up to 4x NVIDIA Tesla P100 SXM2
- Rack Height: 1U
Need Help? let's talk about it.
The Supermicro SYS-1028GQ-TXR is based on the Intel Xeon E5-2600 v3/v4 families. It offers two hot-swappable 2.5" and two 2.5" internal drive bays, and support for four NVIDIA Tesla P100 SXM2 GPUs.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
- E5-2600 v3
- E5-2600 v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612
GPU
4x NVIDIA Tesla P100 SXM2
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 3x PCI-E 3.0 x16 slots
- 1x PCI-E 3.0 x8 slot (low-profile)
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Fixed
2x 2.5" internal drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
LAN
- 2x RJ45 Gigabit Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x Serial Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
