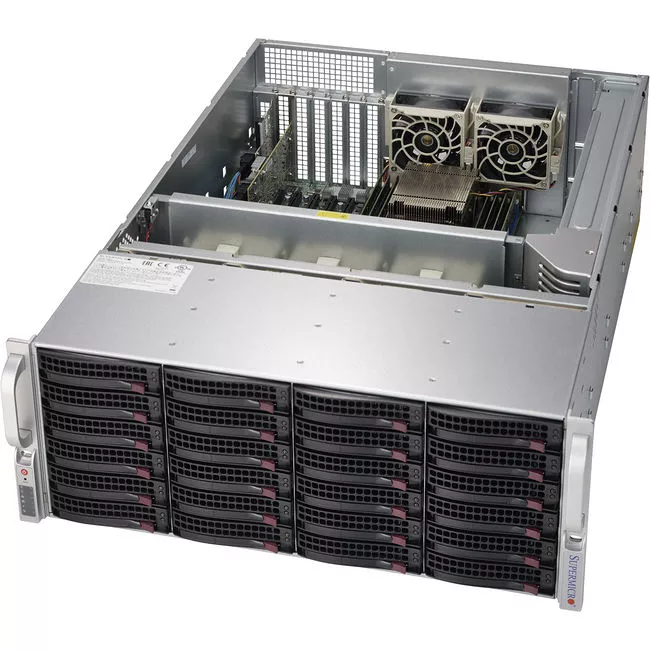

Supermicro SSG-6048R-E1CR24N 4U Storage Server

Please log in to add an item to your wishlist. MPN: SSG-6048R-E1CR24N

Supermicro SSG-6048R-E1CR24N 4U Storage Server

Highlights

Overview

Specifications

The Supermicro SSG-6048R-E1CR24N is based on the Intel Xeon E5-2600 v3/v4 families. It offers twenty-four 3.5" hot-swappable drive bays and two 10G ethernet ports.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 2011-3

Processor Type

Xeon

Processor Supported

E5-2600 v3
E5-2600 v4

Thermal Design Power (TDP)

Up to 145W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory

Maximum Memory

1.5 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

SATA3

Via C612 chipset
RAID 0, 1, 5, 10

SAS3

Via LSI 3108 add-on card
HW RAID 0, 1, 5, 6, 10, 50, 60

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

10GBASE-T

I/O Expansions

PCI Express

2x PCI-E 3.0 x16 slots
3x PCI-E 3.0 x8 slots
1x PCI-E 2.0 x4 (in x8) slot
Slots 3 & 4 occupied by controller and JBOD Expansion Port

Drive Bays

Hot-swap

24x 3.5" Hot-swap drive bays
2x 2.5" Hot-swap drive bays (rear)

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

3 (2x rear, 1x Type A)

Number of USB 2.0 Ports

2 (rear)

Number of SATA Interfaces

Number of SAS Interfaces

LSI 3108 supports up to 240x drives

LAN

4x RJ45 10GBASE-T Ethernet LAN Ports
1x RJ45 IPMI LAN Port

Onboard Video

1x VGA Connector

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

920 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

Width

17.2"

Depth

26.5"
