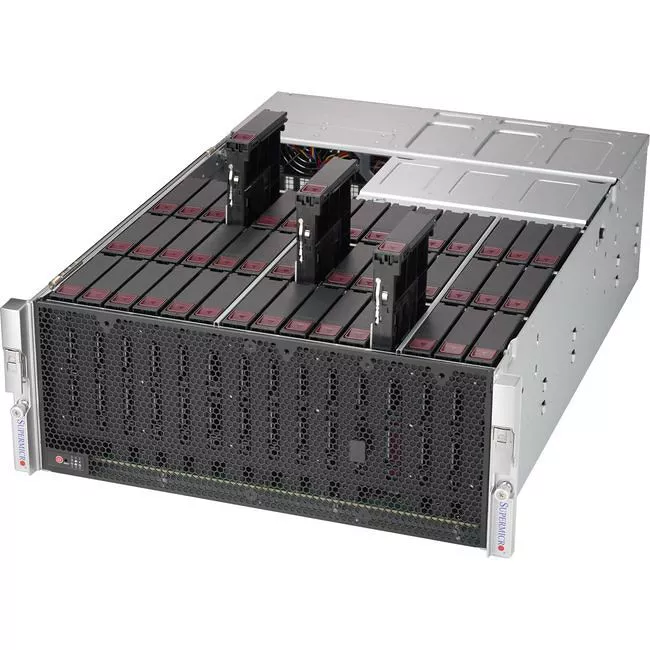

Supermicro SSG-5049P-E1CR45H 4U Storage Server
MPN # SSG-5049P-E1CR45H
Condition: New
Product highlights:
  • Processor Supported: 1x Intel Xeon Scalable Family
  • Drive Bays: 45x 3.5" & 2x 2.5" Hot-Swap
  • Broadcom 3108 SAS3 controller
  • Rack Height: 4U
Contact sales for pricing
Need Help?   let's talk about it.
sales@sabrepc.com   |   408.914.8196

The Supermicro SSG-5049P-E1CR45H is based on the Intel Xeon Scalable family. It offers forty-five 3.5" & two 2.5" hot-swappable drive bays, and a Broadcom 3108 SAS3 controller.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
2 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
8
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
SAS3
  • Via Broadcom 3108 controller
  • HW RAID
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x8 (in x16 slots)
  • 3x PCI-E 3.0 x8 slots
  • 1x PCI-E 3.0 x4 (used by HBA card)
  • 1x PCI-E 3.0 x4 M.2 Slot (2280, 22110)
Drive Bays
Hot-swap
  • 45x 3.5" Hot-swap drive bays
  • 2x 2.5" Hot-swap drive bays (rear)
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
8
Number of SAS Interfaces
8
Number of M.2 Interfaces
1
LAN
  • 2x RJ45 Ethernet LAN Port
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Serial Port / Header
2 (1x Serial Port, 1x Header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes (1+1)
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
26"
