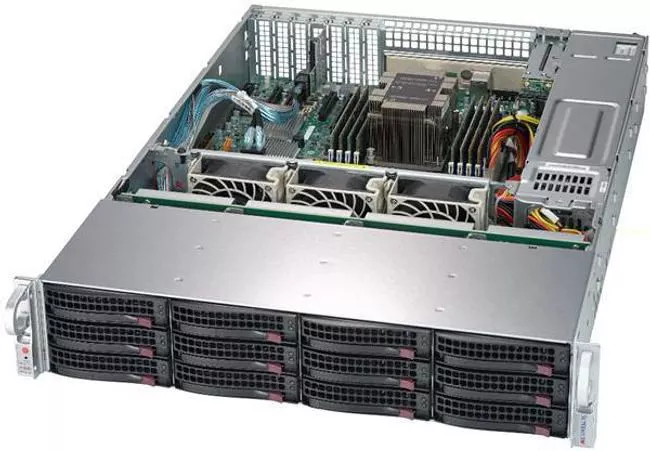

Supermicro SSG-5029P-E1CTR12L 2U Storage Server
MPN # SSG-5029P-E1CTR12L
Condition: New
Product highlights:
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 12x 3.5" Hot-Swap Drive Bays
  • Broadcom 3008 SAS3 Controller
  • Rack Height: 2U
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SSG-5029P-E1CTR12L is based on the Intel Xeon Scalable family processor. It features twleve 3.5" hot-swap drives and a Broadcom 3008 SAS3 controller.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
  • Xeon
Processor Supported
  • Bronze 31XX
  • Silver 41XX
  • Gold 51XX
  • Gold 61XX
  • Platinum 81XX
  • Bronze 32XX
  • Silver 42XX
  • Gold 52XX
  • Gold 62XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
1 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
8
Controllers
Controller Type
  • SATA3 (via Intel C622 Chipset)
  • SAS3 (via Broadcom 3008 Add-On Card)
RAID Supported
Yes
RAID Levels
  • 0, 1, 5, 10 (SATA3)
  • 0, 1,10 (SAS3)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slot
  • 2x PCI-E 3.0 x8 slot
  • 1x PCI-E 2.0 x4 (in x8 slot)
  • 1x PCI-E 3.0 x4 M.2 slot (2280)
Drive Bays
Hot-Swap
  • 12x 3.5" Hot-Swap Drive Bays
Interfaces/Ports
Total Number of USB 3.0 Ports
2 (rear)
Total Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
10
Number of SAS Interfaces
8
Number of M.2 Interfaces
1
LAN
  • 2x RJ45 10BGASE-T Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
  • 1x VGA
Serial Port / Header
2 (1x rear, 1x header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
800 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
25.6"
