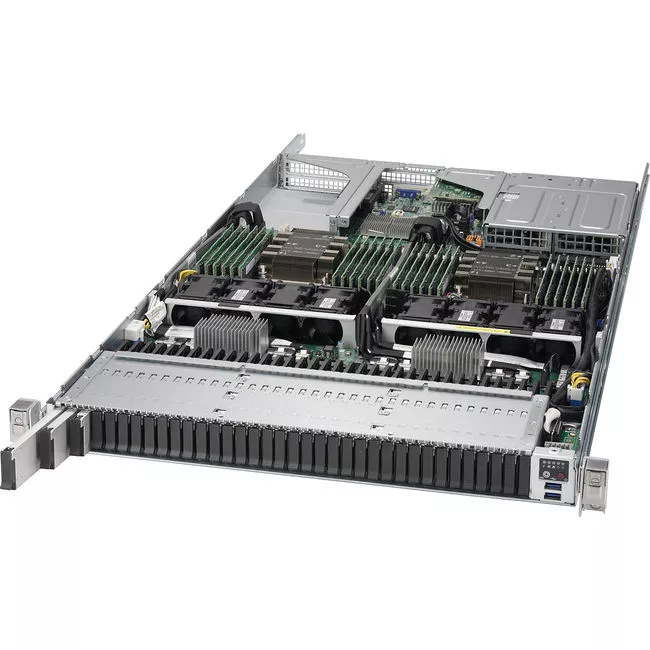

Supermicro SSG-1029P-NMR36L 1U Storage Server

MPN # SSG-1029P-NMR36L
Condition: New
Product highlights:
  • Processor: 2x Intel Xeon Scalable family
  • Ethernet Technology: 10GBASE-T
  • Drive Bays: 32x NGSFF Hot-Swap NVMe
  • Rack Height: 1U
Contact sales for pricing

Need Help?

let's talk about it.
sales@sabrepc.com408.914.8196

The Supermicro SSG-1029P-NMR36L is based on the Intel Xeon Scalable family. It features thirty-two hot-swappable PCIe NF1 drive bays and two 10GBASE-T ethernet ports.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI
3 UPI up to 10.4 GT/s
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C627
Memory
Maximum Memory
6 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C627 chipset
  • RAID 0, 1
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x4 slot (Low-profile)
Drive Bays
Hot-swap
  • 32x NGSFF Hot-swap drive bays
  • Supports 4x NGSFF/SATA3 M.2 hybrid ports
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3 (2x rear, 1x Type A)
Number of SATA Interfaces
4
Number of NVMe Interfaces
  • 32
Number of M.2 Interfaces
  • 4x M.2 SATA3 or PCIe NGSFF hybrid
LAN
  • 2x RJ45 10GBASE-T LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.26"
Depth
30.04"
