MiTAC S5547G2NR Desktop Motherboard - 1x Socket H4 LGA-1151 - Intel H110 - 2x DDR4 - No - 1x PCIe x16 - Flex ATX

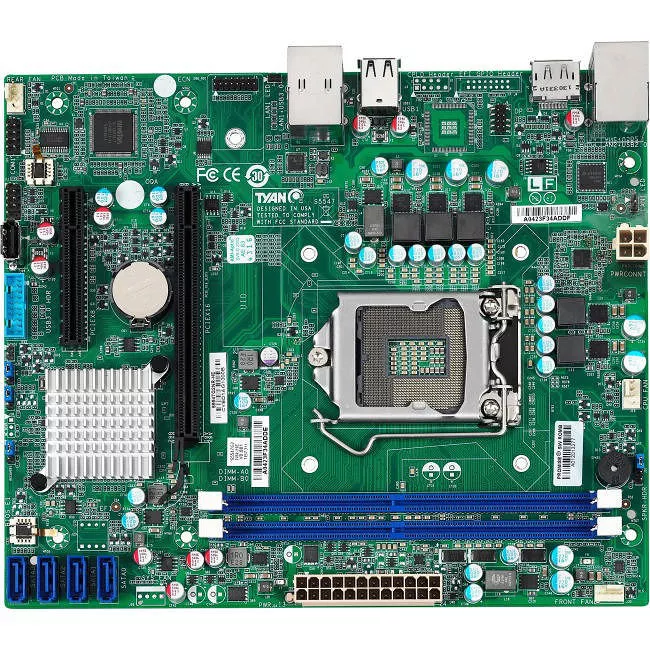

TYAN S5547 Flex-ATX Motherboard Overview
TYAN's S5547G2NR is very small and low cost motherboard designed for applications where size is a concern such as kiosks and digital signage. It is also a great choice for embedded applications such as print servers. The S5547G2NR supports up to 32GB Unbuffered DDR4 memory and supports digital displays through a DisplayPort connector.
Expansion and I/O
The S5547G2NR maximizes possible PCIe on the limited space with (1)x16 slot and (1)x8 slot with a x4 link.
Networking Options
The S5547G2NR has (2) 1000Base-T ports via a duo of Intel I210-AT and Intel I219-LM.
Storage Options
The S5547G2NR has (4) SATA 6G ports through the Intel H110 PCH which supports Intel RST 14.x RAID.
Server Management
TYAN's S5547 supports Intel's Active Management Technology v11.0. Intel AMT allows IT personnel better control over a fleet of desktop, workstation, and thin clients by providing out-of-band management that works even in the event of an operating system failure. The technology also provides support for high resolution Keyboard-Video-Mouse (KVM), allowing remote control of the system to be handed to remote support personnel in times of need. Management features such as Intel AMT help your business lower the TCO of the system by reducing the amount of time and effort expenditure needed by support technicians.
