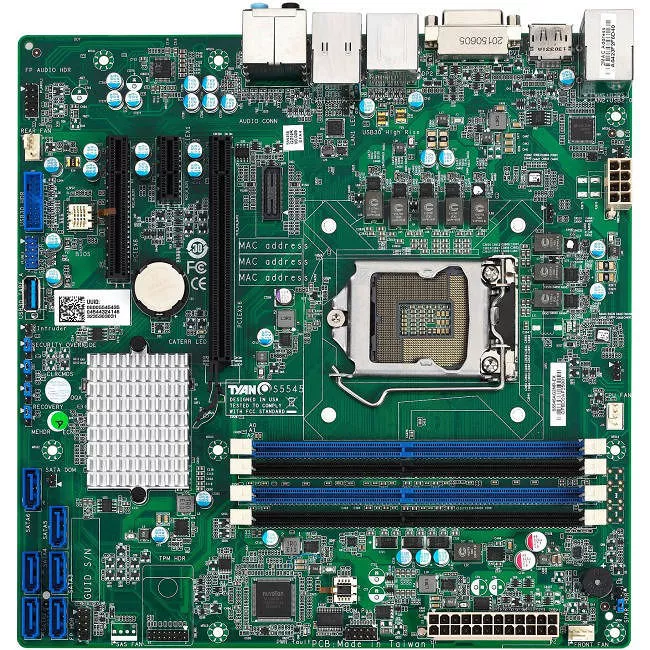

MiTAC S5545AG2NR-EX Desktop Motherboard - 1x Socket H4 LGA-1151 - Intel Q170 - 4x DDR4 - RAID - 1x PCIe x16 - Micro ATX

MPN: S5545AG2NR-EX
Out of Stock
Highlights
Contact sales for pricing
Please log in to add an item to your wishlist.
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MiTAC S5545AG2NR-EX Desktop Motherboard - 1x Socket H4 LGA-1151 - Intel Q170 - 4x DDR4 - RAID - 1x PCIe x16 - Micro ATX
MPN: S5545AG2NR-EX
Contact sales for pricing

MiTAC S5545AG2NR-EX Desktop Motherboard - 1x Socket H4 LGA-1151 - Intel Q170 - 4x DDR4 - RAID - 1x PCIe x16 - Micro ATX

Out of Stock
Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5545AG2NR-EX
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest EX
Product Model
S5545
Product Name
Tempest EX S5545-EX µATX Intel Embedded Motherboard With Triple Monitor Output
Packaged Quantity
1
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Q170
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Core i3
  • Pentium
  • Core i5
  • Core i7
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    64 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2133 MHz
  • 2400 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Intel RSTe
    Yes
    RAID Supported
    Yes
    RAID Levels
  • 10
  • 5
  • 1
  • 0
    • Video
    Onboard Video
    CPU Dependent Video
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.0 Ports
    4
    DisplayPort
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 3.0 Ports
    3
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • Tempest EX S5545-EX µATX Intel Embedded Motherboard With Triple Monitor Output
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    • 1 x I/O Shield
    • 2 x SATA Signal Cables
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    3 Year

    Specifications
