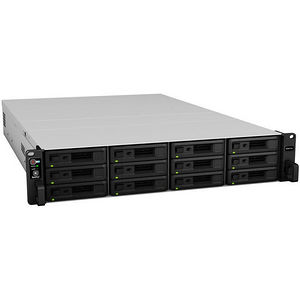

Synology RS3617XS+ SYNOLOGY NAS RACKSTATION RS3617XS+ (DISKLESS)
MPN # RS3617XS+
UPC # 846504002207
Availability: In Stock
Condition: New
Product highlights:
  • Number of Total Expansion Bays: 12
  • Ethernet Technology: 10 Gigabit Ethernet
  • Network (RJ-45): Yes
  • Processor Core: Hexa-core (6 Core)
$4,801.37
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

A new standard in performance

Powered by a 6-core processor, RS3617xs+ delivers blazing performance with over 4,937 MB/s sequential throughput and 556,727 IOPS under a RAID 5 configuration with 10GbE Link Aggregation. Equipped with 8GB DDR4 ECC RAM (upgradeable to 64GB), RS3617xs+ ensures data accuracy when handling high-value data and mission-critical tasks across large-scale businesses.

10GbE network capability

RS3617xs+ comes with two 10GBase-T and four Gigabit ports, and additionally allows for the installation of up to two 10GbE Network Interface Cards (NIC), maximizing bandwidth and meeting high performance requirements for data-intensive applications.

Scale on demand

As your data storage needs grow, RS3617xs+ can be connected to one or two dedicated RX1217/RX1217RP expansion units, allowing you to expand storage capacity up to 36 drives without disrupting service. The high-bandwidth cable ensures speedy data transmission between the main server and expansion unit.

Reliable redundancy mechanisms

RS3617xs+ comes with comprehensive redundancy mechanisms to ensure business continuity. Built-in LAN ports with failover provides reliable redundancy in the event of unexpected network failure. The high reliability system design including fanless CPU heat-sink and passive cooling technologies prevents single point of failure.

Enhanced encryption performance

RS3617xs+ is equipped with an encryption engine which offloads encryption calculation tasks from the main CPU, thus allowing it to perform other important tasks. In addition, Advanced Encryption Standard (AES) on shared folders with hardware acceleration ensures security without compromising access performance, providing over 3,665 MB/s in reading.

SSD cache technology

RS3617xs+ enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, RS3617xs+ offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.

5 year warranty

Synology RS3617xs+ is backed with Synology's 5-year limited warranty. With technical support and hardware replacement service, the 5-year warranty maximizes your enterprises' return on investment. For the entire duration, you will enjoy technical support via email and telephone.

Synology Replacement Service (SRS)

The Synology Replacement Service (SRS) provides free shipment of replacement units as early as the next business day. SRS can expedite the process of replacing defective products and minimize service downtime.

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.
General Information
Manufacturer
Synology, Inc
Manufacturer Part Number
RS3617XS+
Manufacturer Website Address
http://www.synology.com
Brand Name
Synology
Product Line
RackStation
Product Model
RS3617xs+
Product Name
RackStation RS3617xs+ SAN/NAS Server
Product Type
SAN/NAS Storage System
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Xeon
Processor Model
D-1531
Processor Core
Hexa-core (6 Core)
Processor Speed
2.20 GHz
Memory
Standard Memory
8 GB
Memory Technology
DDR4 SDRAM
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
12
Number of 2.5"/3.5" Bays
12
Number of Total Expansion Slots
2
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, 10, Basic, JBOD
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
Software
Operating System
DiskStation Manager
Management & Protocols
Protocols
  • iSCSI
  • CIFS
  • AFP
  • FTP
  • Kerberos
  • NFS
  • DLNA
  • SMB
  • Physical Characteristics
    Height
    3.5"
    Width
    16.9"
    Depth
    27.2"
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Weight (Approximate)
    31.97 lb
