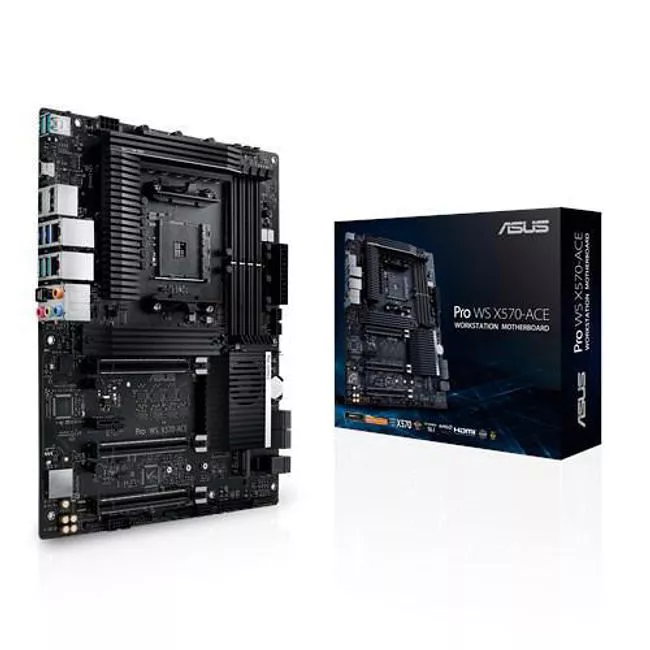

ASUS PRO WS X570-ACE Workstation Motherboard - Socket AM4 - AMD X570 - ATX

MPN: PRO WS X570-ACE
ASUS PRO WS X570-ACE Workstation Motherboard - Socket AM4 - AMD X570 - ATX
Out of Stock
Highlights
  • Processor Socket: Socket AM4
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 128 GB
$397.59
Please log in to add an item to your wishlist.
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
ASUS PRO WS X570-ACE Workstation Motherboard - Socket AM4 - AMD X570 - ATX
MPN: PRO WS X570-ACE

$397.59

ASUS PRO WS X570-ACE Workstation Motherboard - Socket AM4 - AMD X570 - ATX

Out of Stock
Highlights
  • Processor Socket: Socket AM4
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 128 GB

Power Delivery Enhancements Power stages with IR3555 design

The CPU VRM on Pro WS X570-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.

Multi-GPU support

Fully loaded takes on new meaning when you have up to 24 PCI Express® lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.

Multiple layers of PCB

8 layers of PCB provides ultra-smooth and ultra-clean power delivery. It is also the savior not only for the DRAM O.C. but for thermal test results.

Active PCH Heatsink

With double the bandwidth via PCIe 4.0, the X570 platform poses greater thermal challenges than its X470 predecessor. The Active PCH heatsink has a dedicated fan to efficiently combat temperature-induced throttling that can slow performance during sustained transfers.

Active Chipset Heatsink Solution includes:

  • Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 bearing life.
  • Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
  • Finned heatsink: The heatsink fin density is tuned to maximize surface area while maintaining a low-resistance exhaust path.

ASUS Control Center Express

Centralized, cost-effecive server management

ASUS Control Center Express is centralized server management software that works in conjunction with a GbE LAN controller which also serves as a management controller to reduce IT operational costs and improves efficiency. Its out-of-band management enables hardware-level control such as remote hardware reset, BIOS setting and update, and operating system installation across multiple clients, and remotely troubleshoot crashes or unexpected shutdowns.

ECC Memory: A more reliable choice

  • It is automatically detect and repair single-bit memory errors
  • Suitable for mission-critical environments
