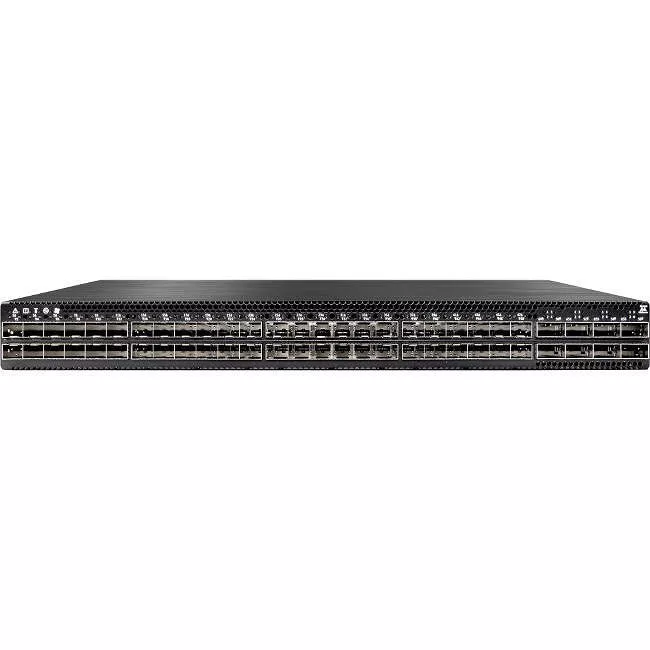

Mellanox MSN2410-BB2F Spectrum Based 10 GbE/40 GbE 1U Open Ethernet Switch, MLNX-OS, 48 SFP28 Ports
MPN # MSN2410-BB2F
UPC # 783555135655
Condition: New
Product highlights:
  • Product Type: Switch Chassis
  • Ethernet Technology: 10 Gigabit Ethernet | 100 Gigabit Ethernet
  • Compatible Rack Unit: 1U
  • Media Type Supported: Optical Fiber
$10,635.23
Need Help?   let's talk about it.
Mellanox SN2410 provides the most predictable, highest performance 100GbE ToR switching platform for the growing demands of today's data centers.

The SN2410 switch is an ONIE (Open Network Install Environment) based platform for allowing a multitude of operating systems to be mounted on it and utilizing the advantages of Open Networking and the capabilities of the Mellanox Spectrum™ ASIC.

The SN2410 has three modes of operation. It can be provided preinstalled with Mellanox Onyx™ (successor to MLNX-OS Ethernet), a home-grown operating system utilizing common networking user experiences and industry standard CLI. It can come preinstalled with Cumulus® Linux, a revolutionary operating system taking the Linux user experience from servers to switches and providing a rich routing functionality for large scale applications. Finally, it can be provided with a bare ONIE image ready to be installed with the aforementioned or other ONIE-based operating systems.

The SN2410 switch is an ideal top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port. Its optimized port configuration enables high-speed rack connectivity to any server at 10GbE or 25GbE speeds. The 100GbE uplink ports allow a variety of blocking ratios that suit any application requirement.

Powered by the Spectrum ASIC and packed with 8 ports running at 100GbE (can be split to 16 ports running 50GbE) and 48 ports running at 25GbE, the SN2410 carries a whopping throughput of 4Tb/s with a landmark 5.95Bpps processing capacity in a compact 1RU form factor.

Keeping with the Mellanox tradition of setting performance record switch systems, the SN2410 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. The low latency is maintained while switching or routing between ports at different speeds, leveraging a smart cut-through architecture that performs on-the-fly optimized buffering, eliminating any dependency between ports. With the SN2410, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities.

The SN2410 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.
General Information
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MSN2410-BB2F
Manufacturer Website Address
http://www.mellanox.com
Brand Name
Mellanox
Product Line
Spectrum
Product Model
SN2410
Product Name
Spectrum SN2410 Switch Chassis
Product Type
Switch Chassis
Interfaces/Ports
Uplink Port
No
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
  • 48 x 10 Gigabit Ethernet Expansion Slot
  • 8 x 100 Gigabit Ethernet Expansion Slot
  • Media & Performance
    Media Type Supported
    Optical Fiber
    Ethernet Technology
  • 10 Gigabit Ethernet
  • 100 Gigabit Ethernet
  • Network Technology
  • 10GBase-X
  • 100GBase-X
  • I/O Expansions
    Number of Total Expansion Slots
    56
    Expansion Slot Type
  • SFP28
  • QSFP28
  • Shared SFP Slot
    No
    Network & Communication
    Layer Supported
    3
    Management & Protocols
    Manageable
    Yes
    Power Description
    Power Source
    Power Supply
    Redundant Power Supply Supported
    No
    Physical Characteristics
    Compatible Rack Unit
    1U
    Form Factor
  • Rail-mountable
  • Rack-mountable
  • Height
    1.7"
    Width
    17.2"
    Depth
    17"
    Weight (Approximate)
    18.78 lb
    Miscellaneous
    Package Contents
    • Spectrum SN2410 Switch Chassis
    • Rail Kit
    • 2 x Power supplies (AC)
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
