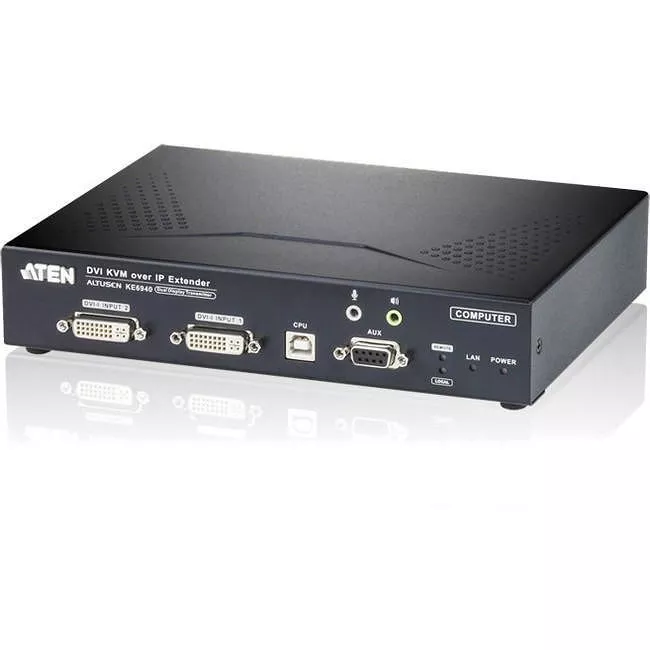

ATEN KE6940T USB DVI-I Dual Display KVM Over IP Transmitter
MPN # KE6940T
UPC # 672792402876
Availability: In Stock
Condition: New
Product highlights:
  • KVM Technology: Digital
  • Maximum Video Resolution: 1900 x 1200
  • Number of Network (RJ-45) Ports: 1
  • Connectivity Technology: Wired
$1,633.29
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

The Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6940 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

More from the Manufacturer

General Information
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
KE6940T
Manufacturer Website Address
http://www.aten-usa.com
Brand Name
ATEN
Product Line
ALTUSEN
Product Model
KE6940T
Product Name
KE6940T DVI KVM Over IP Extender Transmitter
Packaged Quantity
1
Product Type
KVM Extender
Technical Information
Connectivity Technology
Wired
KVM Technology
Digital
Number of Computers Supported
1
Number of Local Users Supported
1
Video
Graphic Mode
WUXGA
Maximum Video Resolution
1900 x 1200
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
DVI
Yes
Number of Network (RJ-45) Ports
1
Number of USB Ports
3
Number of DVI Ports
4
Power Description
Input Voltage
5 V DC
Physical Characteristics
Form Factor
Rack-mountable
Transmitter Height
1.80"
Transmitter Width
6.41"
Transmitter Depth
8.46"
Transmitter Weight (Approximate)
2.54 lb
Miscellaneous
Package Contents
  • KE6940T DVI KVM Over IP Extender Transmitter
  • 1 x Power Adapter
  • 1 x USB KVM Cable
  • 1 x DVI-D Cable 2m
  • 1 x Mounting Kit
  • 1 x User Instruction
Environmentally Friendly
Yes
Environmental Certification
  • RoHS
  • WEEE
