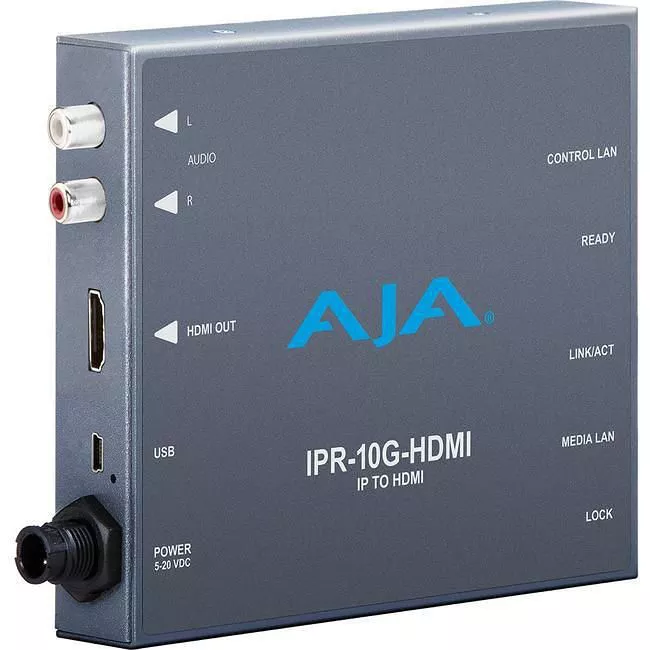

IPR-10G-HDMI provides monitoring of HD SMPTE ST 2110 signals via HDMI. It receives SMPTE ST 2110 over 10 GigE connectivity, formats the data for output on a full-size HDMI interface, and the associated audio from the video stream is extracted, synchronized, and embedded into the HDMI interface and also output on an analog RCA interface.

Features

IPR-10G-HDMI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on HDMI devices. It's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.

Key features:

• SMPTE 2110 audio, video receiver
• Rugged, fanless design
• 1x 10 GigE SFP+ cage for media LAN [with status light]
• 1x 1 GigE RJ45 socket for control LAN [with status light]
• Dedicated HDMI receiver with full size HDMI 1.4b video port
• Support for UltraHD up to 30p, HD up to 1080 60p, YCbCr 4:2:2
• Full 10-bit pixel processing pipeline
• Embedded HDMI audio output (up to eight channels)
• 2x RCA analog audio output
• 1x mini-USB port for initial network configuration with AJA eMini-Setup software
• Complete control interface on any web browser from a built-in webserver
• Customizable control with AJA REST API
• 5-year international warranty and support

Monitor ST 2110 Video and Audio from anywhere on the Network.

The IPR-10G-HDMI is a SMPTE ST 2110 to HDMI Mini-Converter suited for point-of-use applications including source monitoring. The AJA IPR-10G-HDMI receives SMPTE ST 2110 IP video and audio, then formats the data for output on a full size HDMI 1.4b interface.

The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI interface as well as output on an analog RCA interface.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide HDMI monitoring at the destination.
