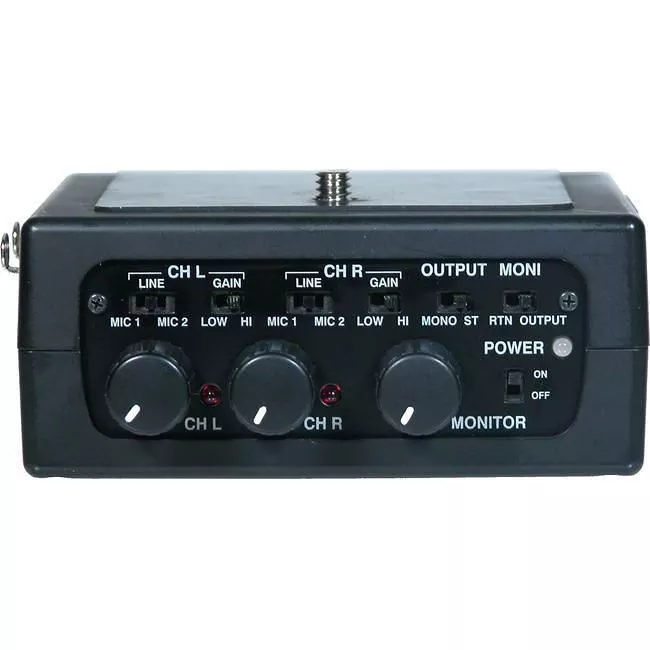

Azden FMX-DSLR 2-Channel Audio Mixer/Adapter for DSLR Cameras
MPN # FMX-DSLR
UPC # 095528070086
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Audio Mixer
  • Condition: New
  • Category: Electronics
  • Subcategory: Home Theater & Audio
$289.00
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

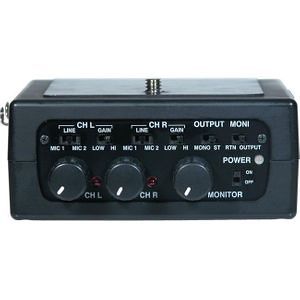

The all New FMX-DSLR is a Professional Low Noise Audio Mixer for DSLR Cameras. With the same advanced circuitry as our top-of-the-line mixers the FMX-DSLR is designed for the demanding needs of Professional DSLR users. The small, battery operated (4-"AA") mixer can be attached directly to a camera or tripod with the integral threads. The FMX-DSLR has the following features: AGC switch for noiseless operation, 2 XLR microphone inputs with individual level controls and switchable phantom power, stereo mini jack microphone input, mini jack line level input, stereo mini plug microphone output and headphone output with level control. LED peak level indicators, input return function (RTN) to monitor camera audio and a power switch with power on/low battery LED.

In The Box
  • FMX-DSLR mixer
  • Manual
  • 3.5mm stereo output cable
General Information
Manufacturer
Azden Corporation
Manufacturer Part Number
FMX-DSLR
Manufacturer Website Address
http://www.azdencorp.com
Brand Name
Azden
Product Model
FMX-DSLR
Product Name
FMX-DSLR 2 Channel Portable Mic/Line Mixer for DSLR Cameras
Product Type
Audio Mixer
Physical Characteristics
Height
1.7"
Width
4.1"
Depth
4.1"
Weight (Approximate)
1.04 lb
Miscellaneous
Package Contents
  • FMX-DSLR 2 Channel Portable Mic/Line Mixer for DSLR Cameras
  • Manual
  • 3.5mm stereo output cable
Additional Information
  • Main and Unbalanced Output: 20-20,000Hz (+0/-1dB)
  • Monitor Output: 50-20,000Hz (-1dB)
  • Left & Right Channel: -110dB
  • T.H.D.: less than 0.01% @ 1 KHk
  • Line/Aux Low setting: Max Input Level +22dBu Max Gain -22dB
  • Line/Aux Hi setting: Max Input Level +6dBu Max Gain -6dB
  • MIC1/MIC2 Low setting: Max Input Level 0dBu Max Gain 0dB
  • MIC1/MIC2 Hi setting: Max Input Level -16dBu Max Gain +16dB
  • 3.5mm Stereo: -3.5dBu (32 ohm load)
  • Unbalanced Output (3.5mm) +0dBu (2K ohms)
  • 4-"AA" Alkaline
  • 15 hours with phantom power off
  • 40mA nominal (Phantom Power Off)
  • 80mA maximum (Phantom Power On)
  • Phantom Power Voltage: 48VDC (+/- 2VDC)
Warranty
Limited Warranty
2 Year
