SabreEDGE 9U HGX B300 Server - ES4-9466906

Please log in to add an item to your wishlist. MPN: ES4-9466906

SabreEDGE 9U HGX B300 Server - ES4-9466906

Highlights

Overview

Specifications

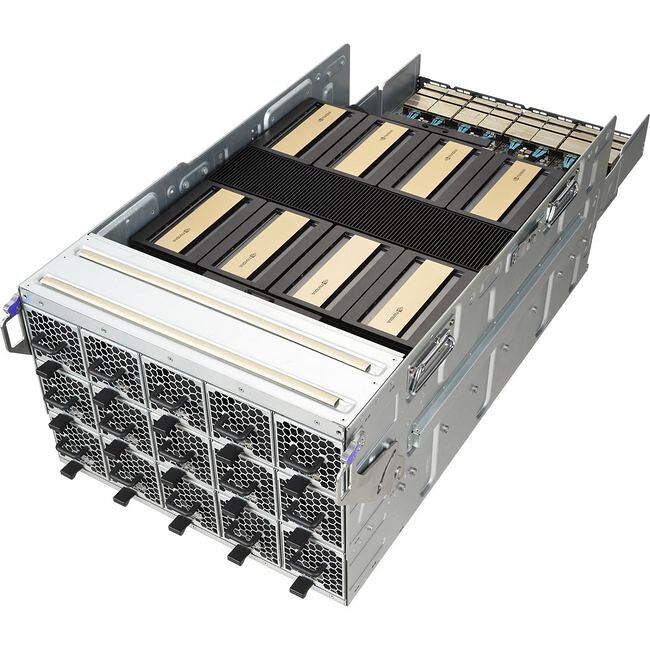

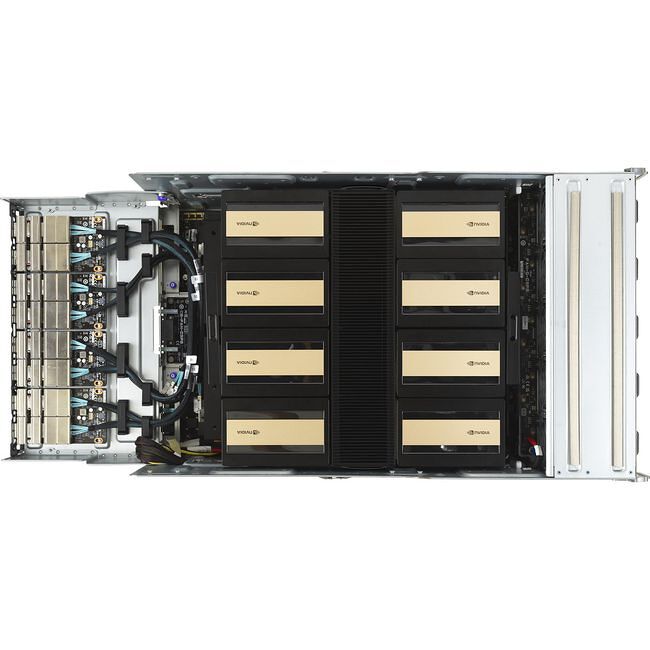

The SabreEDGE ES4-9466906 is based on the Intel Xeon 6700P Series processor. It features ten 2.5" NVMe hot-swap drives and eight NVIDIA B300 SXM GPUs.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket E2 LGA-4710

Processor Type

Xeon 6

Processor Supported

6700P-Series

Thermal Design Power (TDP)

350W

GPU

8x NVIDIA B300 SXM

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200 RDIMM

Number of Total Memory Slots

Controllers

NVMe

Via SoC

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600 BMC

Network & Communication

Ethernet Technology

10GBASE-T
800G OSFP

I/O Expansions

PCI Express

4x PCI-E 5.0 x16 FHHL slots
1x PCI-E 5.0 x8 FHHL slot

Drive Bays

Hot-swap

10x 2.5" hot-swap drive bays
Supports NVMe

Interfaces/Ports

USB Ports

2x USB 3.2 Gen1 (Front, Type A)

Number of NVMe Interfaces

10x U.2

LAN

10GBASE-T (Front)
1x RJ45 Dedicated Management Port (Front)
8x 800G OSFP (Front)

Onboard Video

1x VGA (Front)

TPM

1x TPM Header

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

3200W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

15.53"

Width

17.60"

Depth

37.20"
