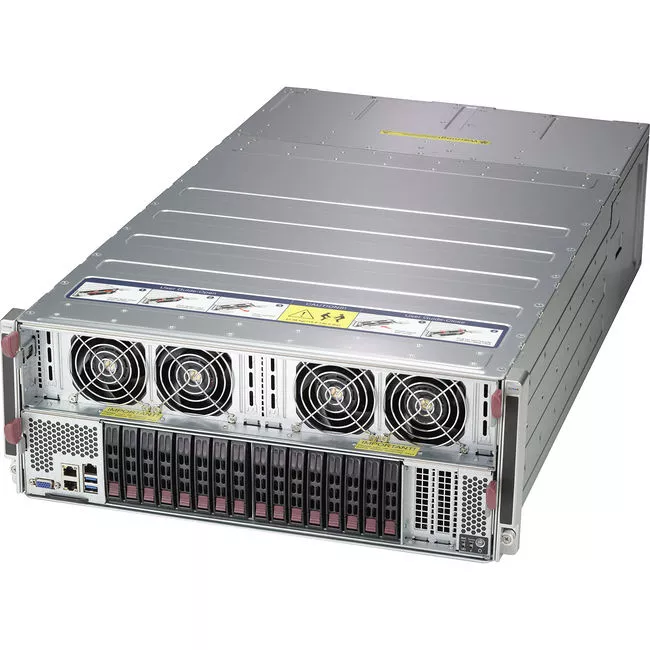

SabreEDGE 4U Server - ES4-1918691

Highlights

Overview

Specifications

The SabreEDGE ES4-1918691 is based on the Intel Xeon Scalable family. It features sixteen hot-swappable 2.5" drive bays (8x NVMe) and four NVIDIA Tesla V100 SXM2 GPUs.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

Up to 205W

Number of UPI

3 UPI up to 10.4 GT/s

GPU

8x NVIDIA Tesla V100 Volta SXM2

Chipset Manufacturer

Intel

Chipset Model

C621

Memory

Maximum Memory

3 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

SATA3

Via C621 chipset
RAID 0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500

Network & Communication

Ethernet Technology

10GBASE-T

I/O Expansions

PCI Express

4x PCI-E 3.0 x16 slots (Low-profile, GPU tray for GPUDirect RDMA)
2x PCI-E 3.0 x16 slots (Low-profile, CPU tray)

Drive Bays

Hot-swap

16x 2.5 hot-swap drive bays
Supports 8x NVMe drives

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

Number of SATA Interfaces

LAN

2x RJ45 10GBASE-T Ethernet LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

Serial Port / Header

1x CPM port (header)

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

2200 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

7.0"

Width

17.6"

Depth

31.7"
