SabreEDGE 2U Server - ES2-10563932

Please log in to add an item to your wishlist. MPN: ES2-10563932

SabreEDGE 2U Server - ES2-10563932

Highlights

Overview

Specifications

The SabreEDGE ES2-10563932 is based on the Intel Xeon 6500/6700 Series processor. It offers up to two 2.5" hot-swap drive bays and support for two PCI-E 5.0 x16 Double-Wide cards.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket E2 LGA-4710

Processor Type

Xeon 6

Processor Supported

6700E-Series
6700P-Series
6500P-Series

Thermal Design Power (TDP)

350 W

Chipset Manufacturer

Intel

Chipset Model

SoC

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200 RDIMM
DDR5-8000/PC5-64000 MRDIMM

Number of Total Memory Slots

Controllers

SATA/NVMe

Via SoC

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600 BMC

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions

PCI Express

2x PCI-E 5.0 x16 slots (Supports Double-Wide cards)
2x PCI-E 5.0 x16 OCP3.0 slots
1x PCI-E 5.0 x2 M.2 slots (2280/22110)
1x PCI-E 5.0 x2 M.2 slots (2280/22110, shared with SATA)

Drive Bays

Hot-swap

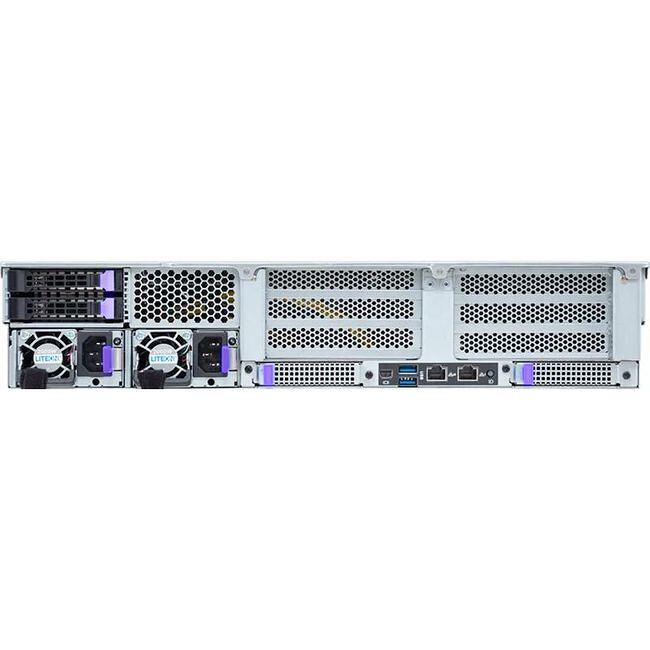

2x 2.5" hot-swap drive bays (rear)
Supports SATA/NVMe hybrid

Interfaces/Ports

Total Number of USB 3.2 Gen1 Ports

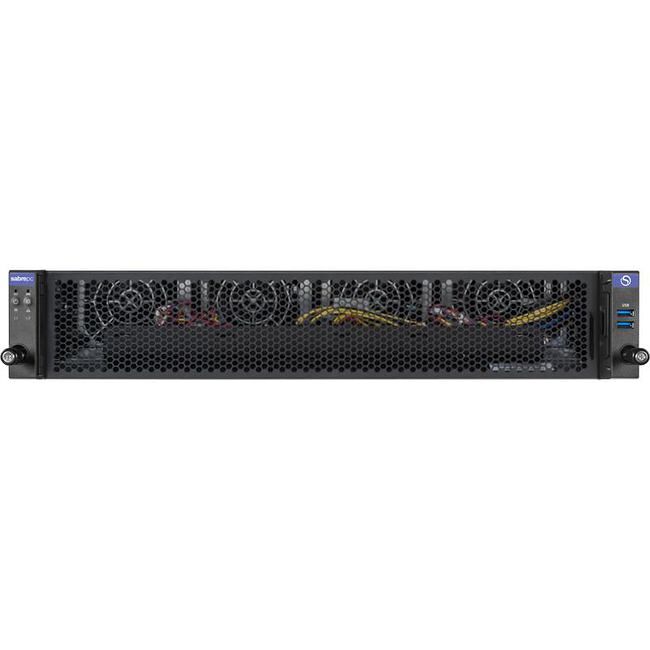

4 (2x Front, 2x Rear)

Number of NVMe Interfaces

2x U.2
2x M.2 (1x slot is shared with SATA)

LAN

1x 1000BASE-T (1GbE) RJ45 Port
1x RJ45 Management Port

Onboard Video

1x Mini DisplayPort

TPM

1x TPM Header

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

2000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.44"

Width

17.24"

Depth

20.47"
