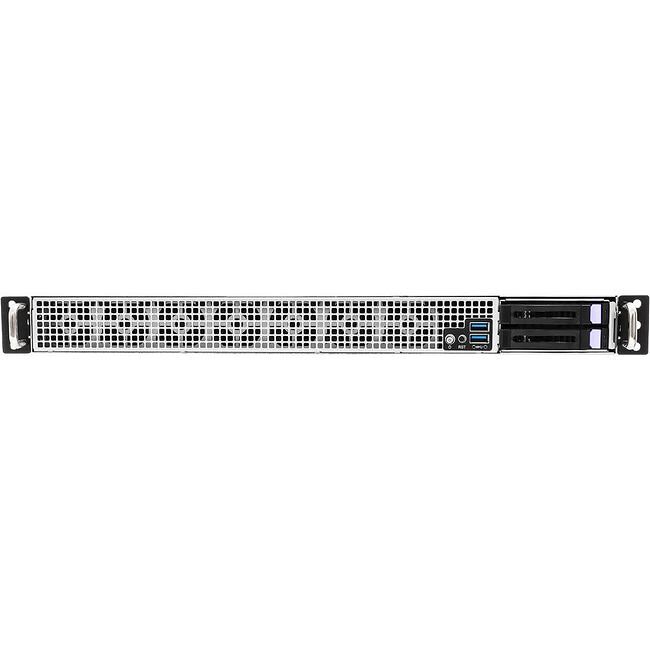

The SabreEDGE ES1-10506436 is based on the AMD EPYC 9004/9005 Series processor. It offers two hot-swappable 2.5" drive bays, and one PCI-E 5.0 x16 Double-Wide slot.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP5 LGA-6096

Processor Type

EPYC

Processor Supported

9005-Series
9004-Series

Thermal Design Power (TDP)

300 W

Chipset Manufacturer

N/A

Chipset Model

SoC

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200

Number of Total Memory Slots

Controllers

NVMe

Via SoC

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600 BMC

Network & Communication

Ethernet Technology

Via optional OCP3.0 card

I/O Expansions

PCI Express

1x PCI-E 5.0 x16 slots (Supports Double-Wide card)
1x PCI-E 5.0 x16 HHHL slot
1x PCI-E 5.0 x16 OCP3.0 slot
2x PCI-E 5.0 x4 M.2 slot (22110/2280)

Drive Bays

Hot-swap

2x 2.5" hot-swap drive bays
Supports PCI-E 4.0 x4 NVMe U.2

Interfaces/Ports

Total Number of USB 3.2 Gen1 Ports

4 (2x Front, 2x Rear)

Number of NVMe Interfaces

2x U.2
2x M.2

LAN

Via OCP3.0
1x RJ45 Management Port

Onboard Video

1x Mini DisplayPort

TPM

1x TPM Header

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes (1+1)

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

25.6"
