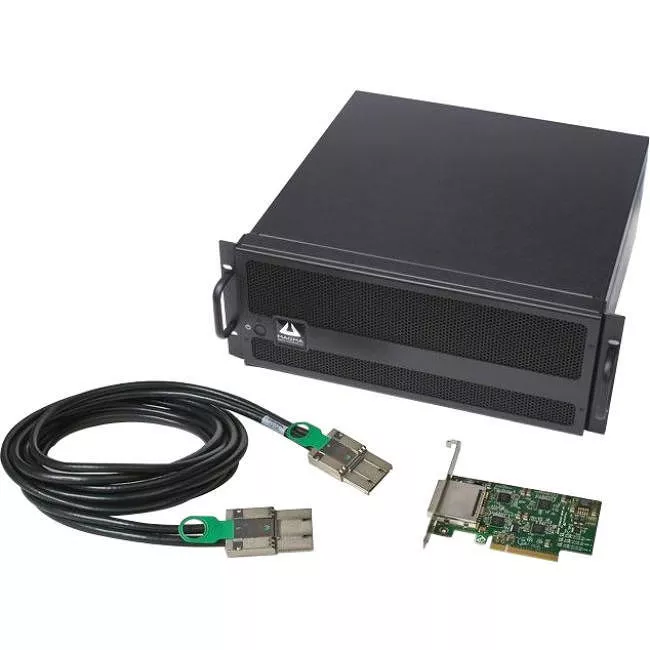

Seven Slot PCI Express Expansion Chassis

ExpressBox 7 X8G2 grants the ability to add seven hot-pluggable PCIe slots in a 4U rackmount chassis with a 550W power supply and quiet cooling.

ExpressBox 7 X8G2 is an expansion solution that provides 7 full-length PCI Express slots. This is a standalone chassis in an industry standard enclosure with its own power supply. The PCI Express slots are hot-swappable. The chassis allows the flexibility to expand the I/O capabilities of a server or workstation seamlessly capitalizing on the transparency of PCI Express architecture.

Cost-effective Solution for Expanding I/O capacity

Magma ExpressBox 7 X8G2 provides a cost-effective path to expand the available number of PCI Express slots while maintaining consistent server or workstation configuration. The product provides increased I/O capacity and scalability.

Benefits:

• Industrial solution for adding up to 7 PCI Express cards to one computer
• Attach full-length PCI Express cards to computer with limited card space
• Supports speeds up to 40Gbps
• Supports daisy chain or fan out configuration of multiple expansion chassis

• Easy Plug and Play installation
• High-speed x8 PCI Express connection
• 4U rack-mount enclosure
• Two thermistor controlled CFM fans reduce unnecessary noise
• 550W power supply with (7) auxiliary power connectors for cards that require more than 75 watts
• Automatic power-up control by computer
• Hot swappable slots can be easily disabled by dip-switch
• UL Mark
• Rack slide kit
• Card hold down bar
