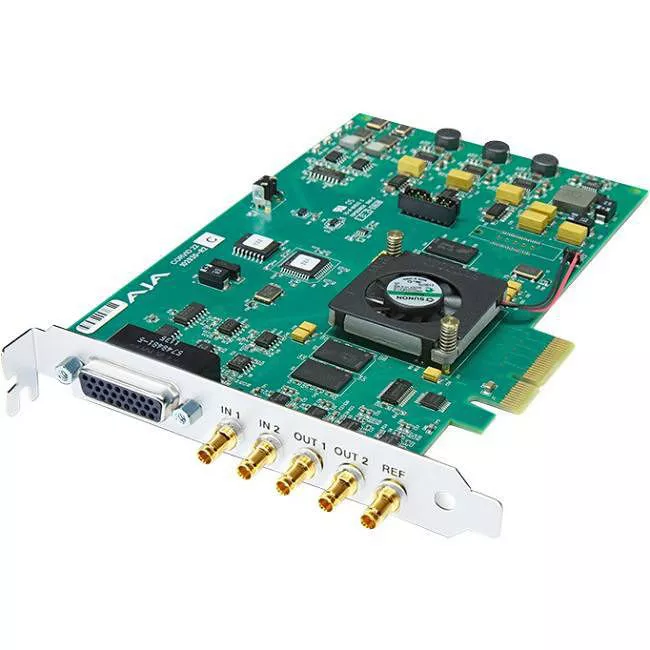

AJA CORVID 22 4-lane PCIe card, 2-in/2-out HD/SD/3G SDI
PCIe Gen 1.0 4x Card for 8/10-bit Uncompressed with 2 Channels I/O Digital 3G, HD, SD-SDI I/O
Get multiple I/O channels without taking up a lot of space. Corvid 22 provides high performance, dual channel video and embedded 24-bit audio I/O in a single PCIe card. Two completely independent channels handle resolutions up to 2K and high frame rate 3G as well. With separate LTC and RS-422 machine control per channel and support for multiple operating systems, Corvid 22 gives you all the performance and capabilities you need.
- PCI Express 4-lane
- 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
- All SD/HD/2K x 1080 Video Formats
- 3G Input/Output for 1080p 50/60 and Video/Key (dual link not supported)
- 8/10-Bit YCbCr and RGB frame buffer formats
- 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers.
- 2 Independent 16-Ch 48 kHz SDI Embedded Audio I/O engines
- Analog Color Black or HD Tri-Level Sync
- Three year warranty
Powerful Platforms for Development Partners
AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.
