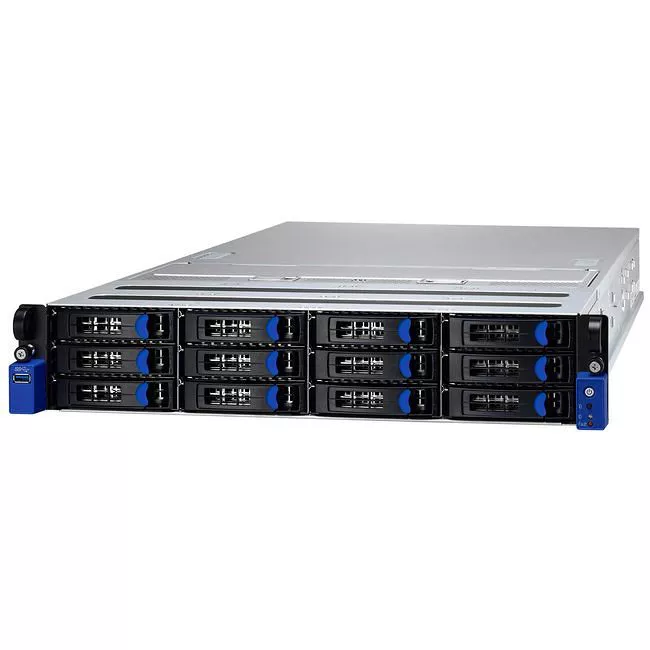

TYAN B7102T76V12HR-2T-G Thunder SX 2U Rack Barebone - 2x GPU - Intel C621 Chipset - LGA-3647

MPN: B7102T76V12HR-2T-G
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: B7102T76V12HR-2T-G
Contact sales for pricing

TYAN B7102T76V12HR-2T-G Thunder SX 2U Rack Barebone - 2x GPU - Intel C621 Chipset - LGA-3647

Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7102T76V12HR-2T-G
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder SX
Product Model
TN76B7102
Product Name
Thunder SX TN76B7102 (B7102T76V12HR-2T-G)
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Gold
  • Xeon Platinum
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    12
    Number of 3.5" Bays
    12
    Number of Total Expansion Slots
    5
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    3
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.0 Ports
    3
    Number of SATA Interfaces
    12
    Software
    Operating System Supported
  • Windows Server 2012
  • Windows Server 2012 x64
  • Windows 8 Enterprise
  • Windows 8 Enterprise x64
  • Windows 8.1 Enterprise x64
  • Windows 10 Enterprise x64
  • Windows Server 2016 x64
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.0 x64
  • Red Hat Enterprise Linux 7.1 x64
  • Red Hat Enterprise Linux 7.2 x64
  • Red Hat Enterprise linux 7.3 x64
  • SuSE Linux Enterprise Server 10
  • SuSE Linux Enterprise Server 10 x64
  • SuSE Linux Enterprise Server 11
  • SuSE Linux Enterprise Server 11 x64
  • Red Hat Enterprise Linux 6.5
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.2"
    Depth
    29.9"
    Weight (Approximate)
    61.73 lb
    Miscellaneous
    Package Contents
    • Thunder SX TN76B7102 (B7102T76V12HR-2T-G)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
