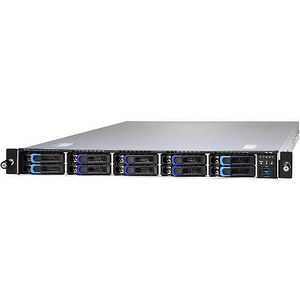

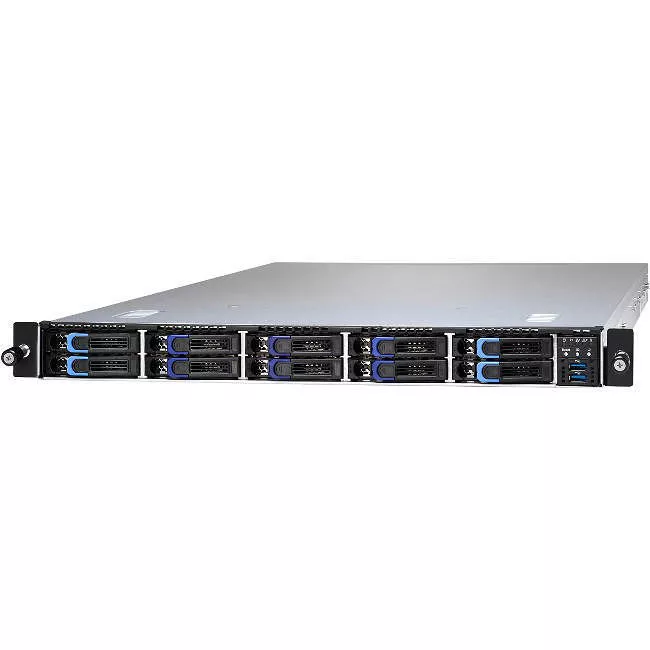

TYAN B7102G75BV6E4HR-2T CX GT75BB7102 1U Rackmount Barebone - Intel Chipset - Socket P LGA-3647

MPN: B7102G75BV6E4HR-2T
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: B7102G75BV6E4HR-2T
Contact sales for pricing

TYAN B7102G75BV6E4HR-2T CX GT75BB7102 1U Rackmount Barebone - Intel Chipset - Socket P LGA-3647

Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7102G75BV6E4HR-2T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder CX
Product Model
GT75BB7102
Product Name
Thunder CX GT75BB7102 (B7102G75BV6E4HR-2T)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    10
    Number of Internal 2.5" Bays
    6
    Number of Total Expansion Slots
    4
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Number of SATA Interfaces
    10
    Software
    Operating System Supported
  • Windows Server 2016 Standard x64
  • Windows Server 2012 R2 Standard x64
  • Windows 10 Pro x64
  • Windows 8.1 Enterprise x64
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • SUSE Linux Enterprise Server 12
  • CentOS 7.3 x64
  • Ubuntu 16.04 LTS
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    750 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    29.7"
    Weight (Approximate)
    38.58 lb
    Miscellaneous
    Package Contents
    • Thunder CX GT75BB7102 (B7102G75BV6E4HR-2T)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
