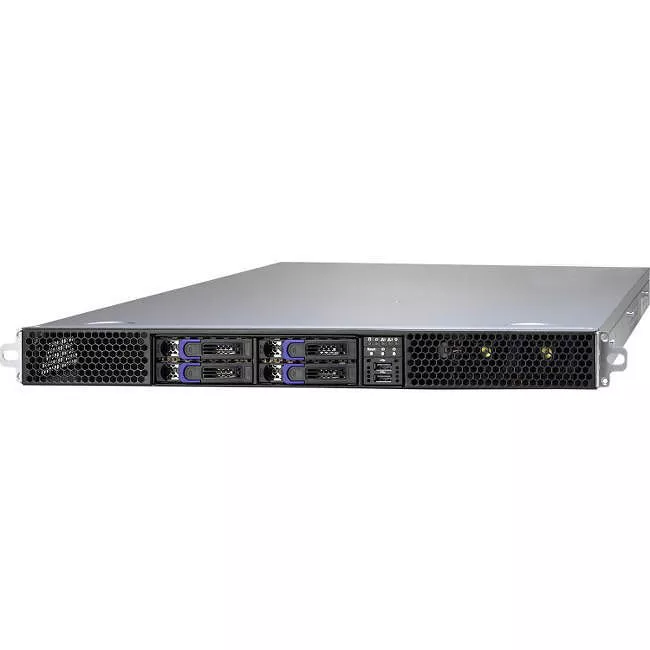

TYAN B7081G80V4HR-X 1U Rackmount Barebone - Intel C612 Chipset - Socket R LGA-2011 - 2 x CPU

MPN: B7081G80V4HR-X

Product Highlights:

  • Number of Processors Supported: 2
  • Processor Socket: Socket R3 LGA-2011
  • Maximum Memory: 2 TB
  • Memory Standard: DDR4-2400/PC4-19200
$1,667.50
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7081G80V4HR-X
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GA80-B7081
Product Name
GA80-B7081 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    4
    Number of Internal 2.5" Bays
    4
    Number of Total Expansion Slots
    4
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    3
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    4
    Software
    Operating System Supported
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.0 x64
  • SuSE Linux Enterprise Server 12 x64
  • Windows Server 2008 R2 Datacenter x64
  • Red Hat Enterprise Linux 7.1 x64
  • Windows Server 2012 R2 Datacenter x64
  • SuSE Linux Enterprise Server 11.3 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.3"
    Depth
    31.5"
    Weight (Approximate)
    38.58 lb
    Miscellaneous
    Package Contents
    • GA80-B7081 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
