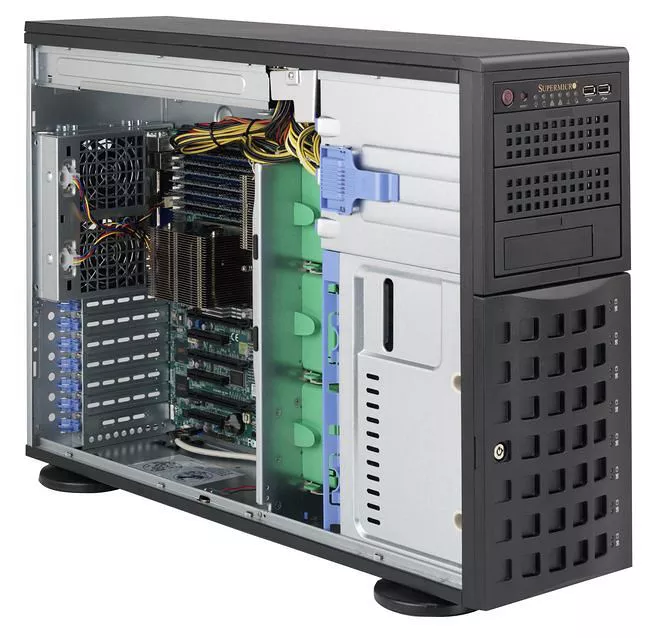

Supermicro AS-4023S-TRT 4U Rack-mountable Server
MPN # AS-4023S-TRT
Condition: New
Product highlights:
  • Processor Supported: 2x AMD EPYC 7000-Series
  • Drive Bays: 8x 3.5" Hot-Swap, 2x 5.25" External
  • Supports up to 2x Double-Wide cards
  • Form Factor: 4U Rackmountable / Tower
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro AS-4023S-TRT is based on the AMD EPYC 7000-Series. It features eight hot-swappable 3.5" drive bays and support for up to two Double-Wide cards.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7000-Series
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
SATA3
  • Via SoC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (2x double-wide cards)
  • 3x PCI-E 3.0 x8 slots
M.2
  • 1x SATA/PCI-E 3.0 x2 2280/22110 M-Key
Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
  • 8x SATA3 ports
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
Serial Port / Header
1x COM port (rear)
DOM
2x DOM power connectors
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1280 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
17.8"
Width
7.0"
Depth
25.5"
