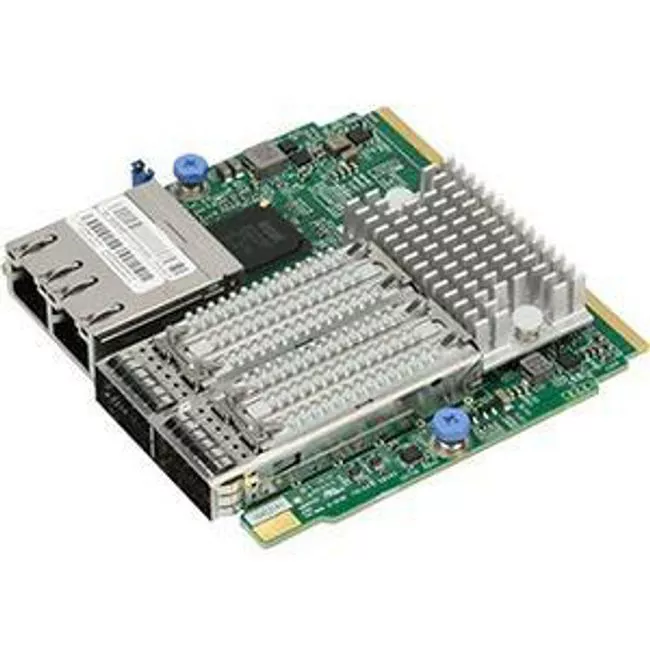

Supermicro AOC-MHIBF-M2Q2G-O SIOM 2-port IB FDR QSFP+ Mellanox CX-3 Pro and 2x GbE RJ45 Intel i350
MPN # AOC-MHIBF-M2Q2G-O
Availability: In Stock, Ships within 5-7 days
Condition: New
Product highlights:
  • Product Type: Infiniband Host Bus Adapter
  • Data Transfer Rate: 56 Gbit/s | 40 Gbit/s
  • Condition: New
  • Category: Computers and Portables
$609.82
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
The Ultimate InfiniBand FDR Adapters, in Supermicro Super I/O Module (SIOM) Form Factor
The AOC-MHIBF-m2Q2G and AOC-MHIBF-m1Q2G are the most powerful InfiniBand controllers in the IT market. In small form factor SIOM, available as part of an integrated solution with Supermicro servers, they provide both InfiniBand FDR 56Gbps and 40Gbps Ethernet as well as remote server management through a dedicated Gigabit LAN controller. Based on Mellanox® ConnectX-3 Pro and Intel® i350 controllers, they provide the highest performing and most flexible interconnect solutions for Supermicro servers in Enterprise Data Centers and High-Performance Computing deployments.

Key Features:
  • Super I/O Module (SIOM) Form Factor
  • Mellanox® ConnectX-3 Pro InfiniBand FDR controller
  • Dual and Single QSFP connector models
  • Up to 56Gbps InfiniBand or 40Gbps Ethernet
  • Virtual Protocol Interconnect (VPI)
  • VXLAN and NVGRE
  • Intel® i350 GbE controller
  • Dual RJ45 Connectors
  • NC-SI for Remote Management
  • Asset Management Features with thermal sensor
  • RoHS compliant 6/6
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
AOC-MHIBF-M2Q2G-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Name
2-Port InfiniBand FDR Adapter
Package Type
Retail
Product Type
Infiniband Host Bus Adapter
Technical Information
Total Number of InfiniBand Ports
2
Number of Network (RJ-45) Ports
2
Media & Performance
Data Transfer Rate
  • 56 Gbit/s
  • 40 Gbit/s
  • I/O Expansions
    Expansion Slot Type
    QSFP
    Physical Characteristics
    Width
    3.6"
    Depth
    3.4"
