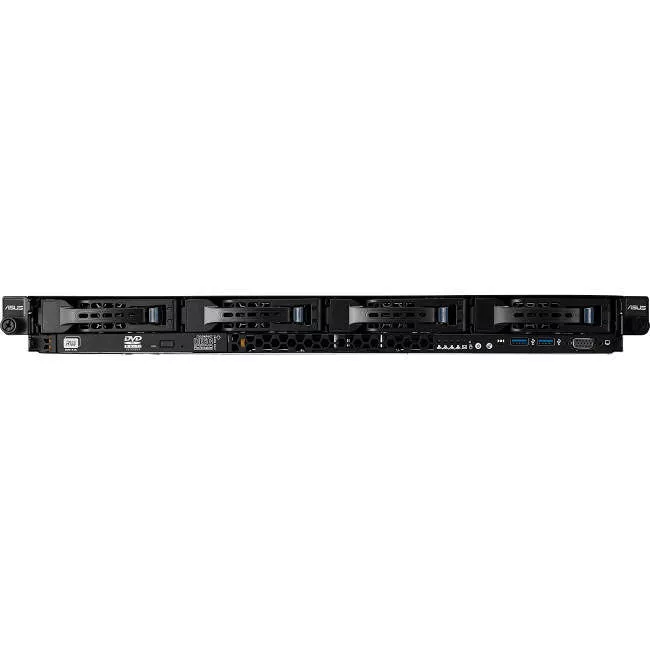

ASUS 90SV03KA-M02LE0 RS700-E8-RS4-V2 1U 2X INTEL CPU SERVER BAREBONE

MPN # 90SV03KA-M02LE0 UPC # 889349119051
Availability: In Stock
Condition: New
Product highlights:
  • Number of Processors Supported: 2
  • Processor Socket: Socket R3 LGA-2011
  • Maximum Memory: 1.50 TB
  • Memory Standard: DDR4-2400/PC4-19200
$494.56

Need Help?

let's talk about it.
Optimized for rack-mounting

RS700-E8-RS4 V2's internal layout is optimized for rack-mounted configurations, with both the CPU and memory placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for increased efficiency- and that makes it perfect for datacenters.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
90SV03KA-M02LE0
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS700-E8-RS4 V2
Product Name
RS700-E8-RS4 V2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
24
Controllers
Controller Type
  • Serial ATA
  • Serial Attached SCSI (SAS)
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    5
    Number of External 5.25" Bays
    1
    Number of 3.5" Bays
    4
    Number of Total Expansion Slots
    4
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    2
    Number of SAS Interfaces
    2
    Software
    Operating System Supported
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 R2
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • CentOS
  • Ubuntu Server
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.5"
    Depth
    27"
    Weight (Approximate)
    26.46 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
