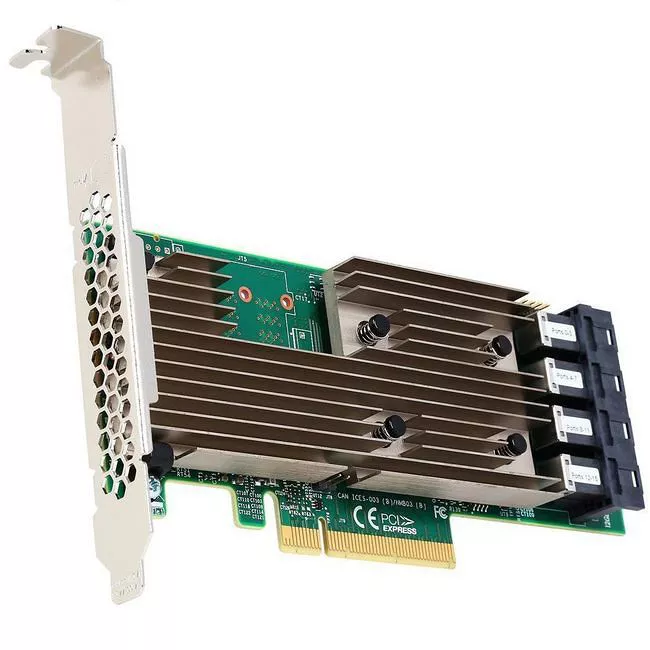

Broadcom 05-25703-00 16 Internal Port 12 Gb/s SAS Controller - SAS 9305-16I SGL
MPN # 05-25703-00
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • Condition: New
$472.29
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Designed for large-scale, data-intensive applications, the SAS 9305-16i 12Gb/s SAS HBA is ideal for increased connectivity and maximum performance for high-end servers and appliances with internal storage.

With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed by critical applications.

  • Connects up to 1024 SAS and SATA devices with 16 internal 12Gb/s SAS ports
  • Provides maximum connectivity and performance for high-end servers and applications.
  • Support critical applications with the bandwidth of PCIe® 3.0 connectivity
  • Achieve more than 1.5 million IOPS for performance-sensitive applications
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25703-00
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Model
9305-16i
Product Name
SAS 9305-16i Host Bus Adapter
Packaged Quantity
1
Packing
Box
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
Interfaces/Ports
Number of SAS Ports (Internal)
16
SAS Connector Details
4 SFF-8643
Physical Characteristics
Form Factor
Plug-in Card
Card Height
Low-profile
Height
2.7"
Width
6.1"
Miscellaneous
Package Contents
  • SAS 9305-16i Host Bus Adapter
  • Documentation CD
Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
  • Warranty
    Limited Warranty
    3 Year
