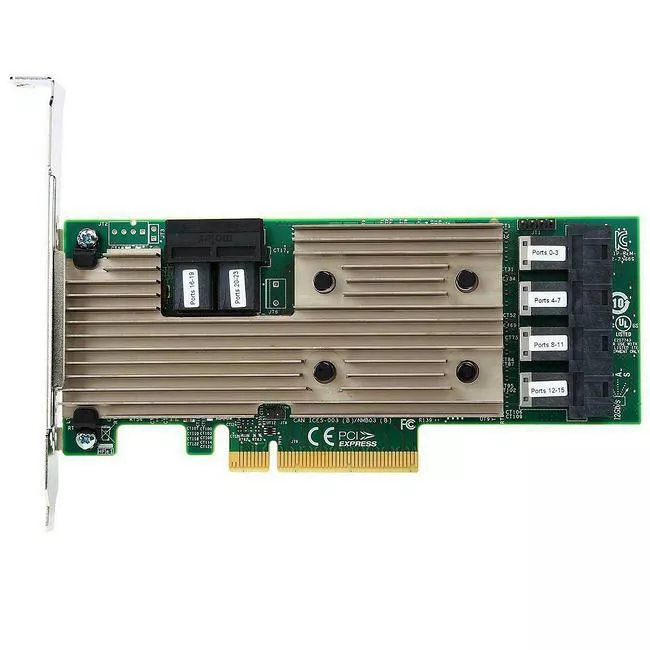

Broadcom 05-25699-00 24 Internal Port 12 Gb/s SAS Controller - SAS 9305-24I SGL
MPN # 05-25699-00
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • Condition: New
$604.20
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Introducing the industry's first single-chip, low-profile 24-port SAS/SATA HDD and SSD direct attach Host Bus Adapter. Using the SAS3224 IOC, this HBA achieves over 1.5 million IOPs with minimal latency and 6,400 MBps throughput performance. The SAS 9305-24i HBA enables data center scaling by offering the ability to connect up to 24 SAS or SATA drives directly or achieve maximum connectivity through expanders.

  • Provides maximum connectivity with 24 SAS/SATA devices for direct attach storage; or up to 1024 SAS/SATA devices using expanders
  • Supports critical applications with the bandwidth of PCIe® 3.0 connectivity
  • Delivers more than 1.5 million IOPS for performance-sensitive applications
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25699-00
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Model
9305-24i
Product Name
SAS 9305-24i Host Bus Adapter
Packaged Quantity
1
Packing
Box
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
Interfaces/Ports
Number of SAS Ports (Internal)
16
SAS Connector Details
4 SFF-8643
Physical Characteristics
Form Factor
Plug-in Card
Card Height
Low-profile
Height
2.7"
Width
6.1"
Miscellaneous
Package Contents
  • SAS 9305-24i Host Bus Adapter
  • Documentation CD
Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
  • Warranty
    Limited Warranty
    3 Year
