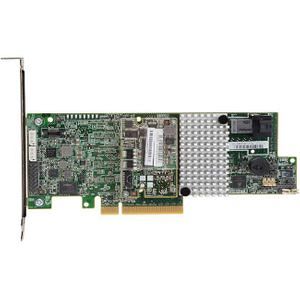

Broadcom 05-25420-10 4 Internal Port 12 Gb/s SAS Controller - LSI00415 / SAS 9361-4I SGL
MPN # 05-25420-10 UPC # 012304892823
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | SPARC
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60
$477.00
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
The explosive growth of data in cloud and enterprise datacenters is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. LSI first-to-market 12Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next-generation server and storage platforms.
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-25420-10
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
9361-4i
Product Name
MegaRAID SAS 9361-4i SGL
Packaged Quantity
1
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60
  • Interfaces/Ports
    Total Number of SAS Ports
    4
    Number of SAS Ports (Internal)
    1
    SAS Connector Details
    1 SFF-8643
    Physical Characteristics
    Height
    2.5"
    Width
    6.6"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Miscellaneous
    Package Contents
    • MegaRAID SAS 9361-4i SGL
    • Quick Installation Guide
    • Low Profile L-bracket
    Platform Supported
  • PC
  • SPARC
  • Warranty
    Limited Warranty
    3 Year
