AJA IPR-10G2-SDI-R0 Single Channel SMPTE ST 2110 Viedo and Audio IP Decoder
SabrePC B2B Account Services
Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.
- Business-Only Pricing
- Personalized Quotes
- Fast Delivery
- Products and Support
$1,759.10
AJA IPR-10G2-SDI-R0 Single Channel SMPTE ST 2110 Viedo and Audio IP Decoder
SabrePC B2B Account Services
Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.
- Business-Only Pricing
- Personalized Quotes
- Fast Delivery
- Products and Support
It receives SMPTE 2110 over 10 GigE connectivity, formats the data for output over 3G-SDI, and the associated audio from the video stream is extracted, synchronized, and embedded into the 3G-SDI signal and also output on an analog RCA interface.
The IPR-10G2-SDI features 2x 10 GbE SFP+ cages allowing "hitless switching", providing redundancy protection for critical distribution and monitoring applications.
The IPR-10G2-SDI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.
Features
IPR-10G2-SDI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on SDI devices. Providing two SFP+ cases for protection with "hitless switching". Its rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.
Key features:
- SMPTE ST 2110 audio, video receiver
- Supports HD up to 60p, YCbCr 4:2:2
- Rugged, fanless design
- 2x 10 GigESFP+ cages for media LAN (providing support for "hitless switching) with status light
- 1x 1 GigERJ45 socket for control LAN with status light
- 2x 3G-SDI Outputs
- Full 10-bit pixel processing pipeline
- Embedded SDI audio output (up to eight channels)
- 2x RCA analog audio output
- 1x BNC Reference In
- 1x mini-USB port for initial network configuration with AJA eMini-Setup software
- Complete control interface on any web browser from a built-in webserver
- Customizable control with AJA REST API
- 5-year international warranty and support
Monitor ST 2110 Video and Audio from anywhere on the Network.

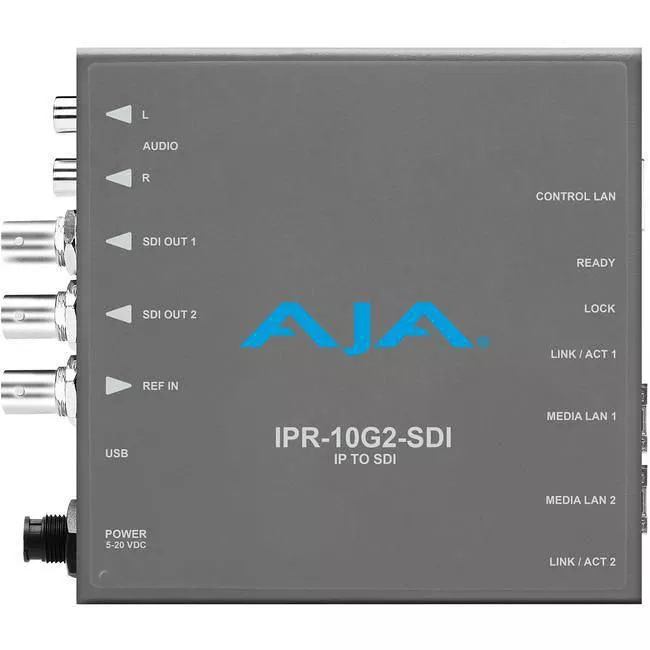

The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and connect to 3G-SDI simultaneously.
With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.
The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for output over 3G-SDI.
The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.
Workflow
IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI units with AJA KONA IP (I/O card for use in desktop workstations) to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.
